Printed circuit board power supply VCE20 series
encapsulatedopen frameAC/DC

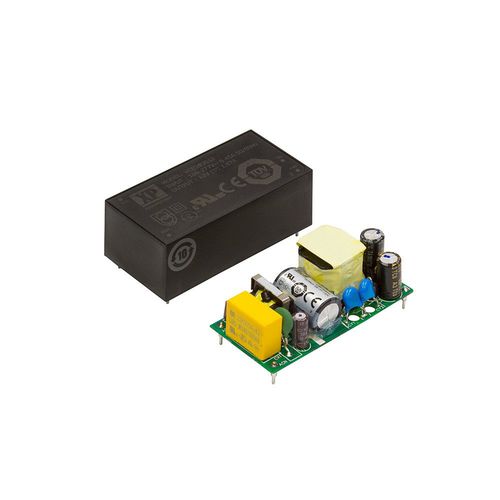

Printed circuit board power supply - VCE20 series - XP Power - encapsulated / open frame / AC/DC
Printed circuit board power supply - VCE20 series - XP Power - encapsulated / open frame / AC/DC
Add to favorites
Compare this product

Characteristics

Mounting / format
for printed circuit boards, encapsulated, open frame
Type
AC/DC
Network
single-phase
Protection
with overheating protection
Certifications
CE, TUV
Applications
for industrial applications
Other characteristics
wide input range, compact
Input voltage

Max.: 305 V

Min.: 85 V

Output voltage

Max.: 48 V

Min.: 3.3 V

Current

Max.: 4.55 A

Min.: 0.42 A

Power

20 W

Description

20W version of low cost green power AC-DC power supplies, with approvals to world-wide safety standards including ITE and household, the VCE20 are available for PCB mounting as encapsulated or open frame (with suffix -P). Their compact design features an integral EMC filter and hold-up capacitor, so no external components are required. The VCE20 provides a cost-effective, PCB mount, single component, AC-DC power supply solution for Internet of Things (IoT) including home automation, heating & lighting control, smart metering, set-top box & multiple industrial applications. FEATURES ITE & household appliance approvals EN55035 immunity standard Class II operation No load input power <0.3W Low Cost -25°C to +70°C operating temperature 3 Year Warranty
