Unregulated DC-DC converter IK seriesSIP-4printed circuitDIP
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- unregulated
- Configuration
- SIP-4, printed circuit, DIP
- Other characteristics
- single-output
- Input voltage
Max.: 26.4 V
Min.: 4.5 V
- Output voltage
Max.: 24 V
Min.: 3.3 V
- Power
0.25 W
Description

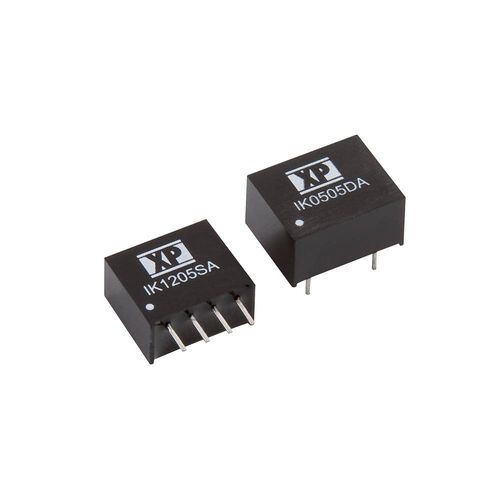

The IK series is housed in a SIP4 or DIP8 plastic case for PCB mounting. Featuring a ±10% input voltage range for 5, 12 & 24VDC nominal inputs, offering single outputs of 3.3, 5, 7.2, 9, 12, 15, 18 & 24VDC.
The 0.25W IK provides 1kVDC isolation between input and output as standard, with 3kVDC isolation available as an option. The operating temperature range is from -40°C to +85°C.
FEATURES
±10% input range
1.0kVDC isolation, 3.0kVDC option
-40°C to +85°C operating temperature
3 Year Warranty
