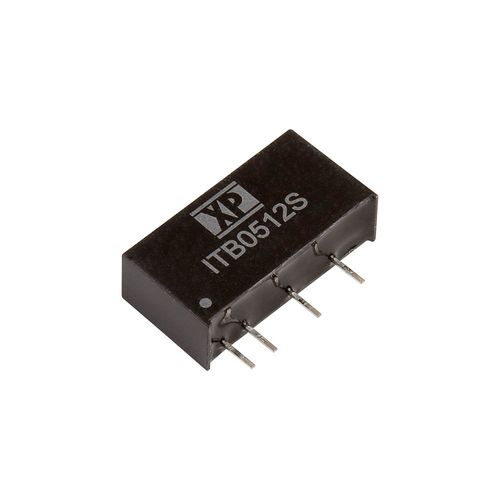

Semi-regulated DC-DC converter ITB seriesSIP-7single-output
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- semi-regulated
- Configuration
- SIP-7
- Other characteristics
- single-output
- Input voltage
Max.: 26.4 V
Min.: 4.5 V
- Output voltage
5 V, 12 V, 15 V
- Power
1 W
Description
The ITB series is housed in a SIP7 plastic case for PCB mounting. Featuring a ±10% input voltage range for 5, 12 & 24VDC nominal inputs, offering singles outputs of 5, 12 & 15VDC.
The 1W ITB provides 1.5kVDC isolation between input and output, short circuit protection is standard. The operating temperature range is from -40°C to +105°C with derating from +95°C.
FEATURES
±10% input range
1.5kVDC isolation
Class B conducted & radiated emissions
-40°C to +105°C operation
Full load to 95°C
3 year warranty
