Automated dispensing system SDB-1RS

for solidsvolumetriclaboratory

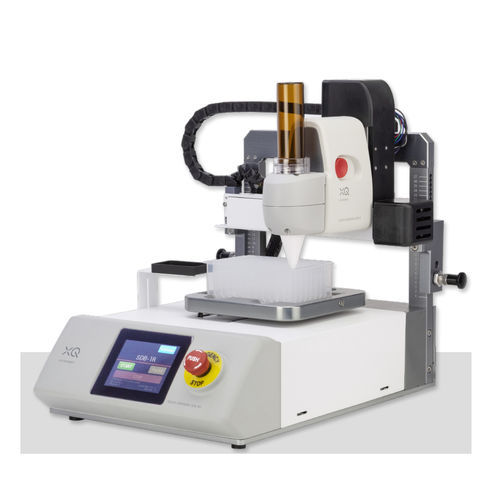

The bench-top Solids Dispenser SDB-1RS is a automated version of the SDB-1 doser for processing of well plates. It is operated via touch screen controller which synchronizes dosing and moving of the well plate from position to position.


This solution increases productivity by allowing for “walk-away” time of lab operators. It alleviates tedious repetitive tasks and improves productivity and process quality.




Workflow


Well plates are inserted in the carrier. Dispensing process is started from touchscreen controller and can be paused / restarted at each moment. Remote start and integration in workcell enabled. Settings for 24 / 48 / 96 or even custom well plates and vial racks can be entered. Instant switching between different configurations.


Features


Integrates SDB-1 Dispenser with full functionality
Pause/Start/Pause after action/Restart function
Multiple dose dispensing (up to 99x repeat shots per container)
Custom tube / vial rack configuration:

• Number of wells/tubes/vials along X- Y-axis
• Spacing between adjacent wells/tubes/vials along X - Y-axis o
• Index location for rst well /tube/vial o Skipped positions
• Ten configurations can be saved and named

Password protected congurations and settings
Pause / Resume function
Z-axis “funnel dipping” to prevent spilling




Specifications

• Dosing cycle time: 4 sec. (including travel and z-axis “dipping”)
• Volumetric dose sizes in the range of 2.3 mm³ - 300 mm³ (corresponds to dose of 5 mg to 300 mg, depending on bulk density of material)
• Powder reservoirs 40 ml, 60 ml, 4 oz
• Size: W 330 mm x D 370 mm x H 345 mm Weight: 9 kg
• Power Supply switching: 115 V / 230 V Power rating: 350 W
