Benchtop dosing dispenser SDB-1RL / SDB-2RL

reagentfor low-viscosity liquidsliquids

Overview

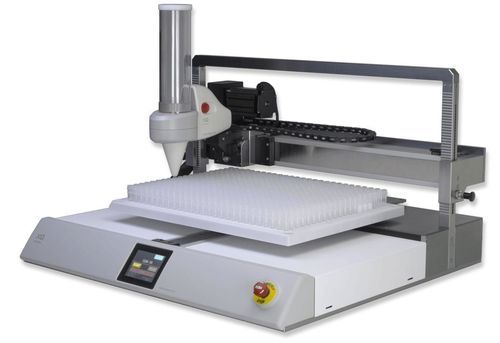

The benchtop SDB-1RL and SDB-2RL are automated benchtop dispensers designed for batch processing of microtubes, vials and well plates. These models extend the SDB-1/SDB-2 functionality with a larger XY table (300 mm x 400 mm) to handle substantial batches and enable unattended operation from a front-panel touchscreen controller.

Workflow

• Load tube, vial or well plate racks into the XY table support on the robotic module.
• Start/Control dispensing from the touchscreen controller; processes can be paused and restarted at any time.
• Configure custom rack formats (container count and spacing) and save named configurations.
• Switch instantly between different rack layouts to process mixed batches.

Features

• Integration: Incorporates SDB-1 / SDB-2 dispenser functionality into an automated benchtop robotic module.
• Control: Touchscreen with start/pause, pause-after-action and restart functions.
• Vibration mode: On/off control for dispensing assistance.
• Multiple dose dispensing: Up to 99 repeat shots per container for multi-dispense protocols.
• Custom rack configuration: Define number of positions along X and Y, spacing, index location for first container, skip positions for irregular patterns and store up to ten named rack configurations.
• Security: Password-protected configurations and settings to prevent unauthorized changes.

Specifications

• Dosing cycle time: 6–8 sec
• Overall size: W 740 mm x D 608 mm x H 933 mm
• Weight: 20 kg
• Power supply switching: 115 V / 230 V
• Power rating: 350 W
• XY table travel: 300 mm x 400 mm
• Multiple dose capability: up to 99 repeat shots per container
• Ten saveable rack configurations; password protection for settings
• Materials validated: see materials validated section on the product page
