Detection gas monitoring equipment

for process monitoringfor industrial usenon-contact measuring

Overview

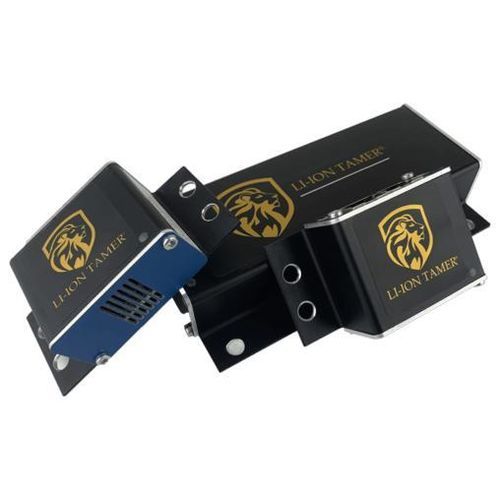

The Li-ion Tamer GEN 3 detects early signs of lithium‑ion battery cell failure by sensing electrolyte vapours (off‑gas), providing facility operators with advance warning to mitigate thermal runaway risks. The system uses non‑contact sensing nodes with integrated temperature and humidity monitoring and supports scalable deployments for a wide range of stationary and industrial battery installations.

Features

• Early warning of lithium‑ion battery failures and prevention of thermal runaway
• Non‑contact detection of cell off‑gas (no mechanical or electrical contact required)
• Independent, redundant layer of battery safety monitoring
• Compatible with all lithium‑ion cell formats and chemistries
• Temperature and humidity measurement at each sensing node
• Modular, scalable architecture for cost‑effective protection of small to large BESS installations
• Easy installation and software‑assisted configuration to reduce commissioning time
• Calibration‑free sensors designed for extended service life
• Integration outputs including relay contacts and Modbus for site systems

Applications

• Stationary Battery Energy Storage
  • Containerized and modular systems
  • Built environment and utility installations
• Data centers
  • Battery UPS and backup systems
• Gigafactories and manufacturing
  • Cell and module assembly lines
  • Battery formation and aging test processes
  • End‑of‑line and quality testing
• Automotive test facilities
  • Vehicle battery test labs
• Laboratory safety
  • Environmental chambers and abuse testing
• Shipping and storage
  • Post‑manufacturing storage and logistics
  • Battery‑powered equipment storage

Certifications

• FM 6540 approval for battery electrolyte solvent vapours (examples: DEC, DMC, EMC)
• ETL listed to UL 61010 and CSA 22.2 No. 61010 for product safety
• EN 61326‑1:2013 (EMC) compliant for EU Directive 2014/30/EU
• RoHS 3 (EU 2015/863), WEEE and REACH compliant
• UKCA marking
• FCC

Resources (documents & firmware available)
Li‑ion Tamer GEN 3 Product Bulletin
Li‑ion Tamer GEN 3 Data Sheet
Li‑ion Tamer GEN 3 User Manual
Li‑ion Tamer GEN 3 Engineering Specifications
Li‑ion Tamer Bump Test Kit Application Note
Li‑ion Tamer Gas List Application Note
Li‑ion Tamer GEN 3 FAQs
Li‑ion Tamer GEN 3 BOM Calculator
Li‑ion Tamer GEN 3 Commissioning Form
Li‑ion Tamer GEN 3 Product Brochure
Multiple case studies and firmware release notes available for GEN 3

Technical specifications

• Detection principle: off‑gas (electrolyte vapours) detection for early indication of cell failure
• Sensing: non‑contact gas detection at distributed sensing nodes with integrated temperature and humidity sensors
• Compatibility: supports all lithium‑ion cell formats and chemistries
• Scalability: modular deployment options for small to large BESS installations
• Installation & configuration: interface software for system configuration and commissioning
• Maintenance: calibration‑free sensors for reduced lifetime maintenance
• Outputs & communications: relay contacts and Modbus outputs for integration with site control systems
• Safety & compliance: FM 6540 approval for relevant electrolyte vapours; ETL (UL 61010 / CSA 61010); EN 61326‑1 EMC; RoHS 3, WEEE, REACH; UKCA and FCC markings
• Support: firmware updates and comprehensive product documentation (data sheet, user manual, engineering specifications, commissioning forms, BOM tools, release notes)
