Detection gas monitoring equipment

for process monitoringfor industrial uselaboratory

Overview

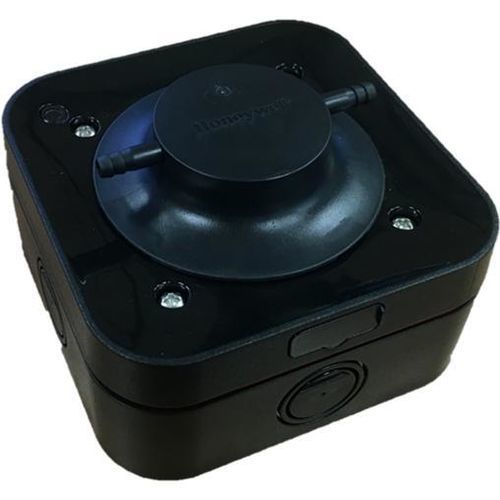

VESDA Sensepoint XCL is a micro-bore aspirated gas detector designed for early gas detection and occupant protection when used with the VESDA‑E VEA aspirating system. Developed by Xtralis in collaboration with Honeywell Analytics, the detector supports fire-threat monitoring and facility gas monitoring. An embedded Bluetooth 4.0 (BLE) interface enables pairing with mobile apps for faster installation, configuration and maintenance.

Available Sensors and Ranges

• Carbon Monoxide (CO): 0–1000 ppm
• Combustible (CAT): 0–100% LEL (factory calibrated to CH4; detects methane, hydrogen, propane, ethanol, butane, octane, etc.)
• Hydrogen (H2): 0–1000 ppm
• Carbon Dioxide (CO2) (v/v): 0–5.0% v/v
• Carbon Dioxide (CO2) (ppm): 0–5000 ppm

Key Features

• Factory-calibrated sensor cartridges (CAT factory calibrated to CH4)
• Integral alarm status LEDs
• Bluetooth 4.0 (BLE) for mobile app pairing
• Integration with PLCs, HVAC, BMS and FACP
• Configurable relay outputs
• Output variants: 4–20 mA analog or RS‑485 Modbus RTU

Accessories

• Option to network Modbus-version detectors to the VESDA Sensepoint 301C Gas Controller for additional relay outputs and centralized configuration/monitoring

Applications

• Residential buildings
• Commercial premises
• Hospitals and healthcare facilities
• Hotels
• Car parks (underground / enclosed)
• Laboratories
• High‑tech manufacturing
• Universities and schools
• Chemical and pharmaceutical facilities
• Indoor air quality monitoring
• Battery rooms
• Fuel storage areas
• Confined spaces
• Food & beverage facilities
• Refrigeration systems (leak detection)
• Greenhouses

Approvals

• Electrical safety: EN/UL/IEC61010‑1; CSA‑C22.2 No. 61010‑1‑12
• CE – EMC: EN 50270
• Radio: RED, FCC, BT SIG
• Other: UL2075 (CO and CH4), AS 1668.2

What the Detector Includes / Ordering Information
Supplied with main detector unit (preinstalled sensor cartridge), two cable glands, calibration/flow cap, flexible adaptor tube and tube clips for connection to VEA microbore tubing. Two output variants available: 4–20 mA analog or Modbus RTU.

Resources and Documentation (available but not linked)
Documentation referenced on the product page includes: data sheet, engineering specifications, app user manual, installation manual, quick start guide, test gas application note, FAQs and application brochures.

Note
Product images may show options or accessories not included with the base model. Product information is subject to change without notice.

Technical specifications

• Model designation: VESDA Sensepoint XCL
• Example model numbers/variants: XCL‑VEA‑CO‑RA, XCL‑VEA‑CO‑RM, XCL‑VEA‑CH4‑RA, XCL‑VEA‑CH4‑RM, XCL‑VEA‑H2‑RA, XCL‑VEA‑H2‑RM, XCL‑VEA‑CO2VV‑RA, XCL‑VEA‑CO2VV‑RM, XCL‑VEA‑CO2PP‑RA, XCL‑VEA‑CO2PP‑RM, XCL‑VEA‑CO‑RA‑5, XCL‑VEA‑CH4‑RA‑5, XCL‑VEA‑H2‑RA‑5
• Sensor types and ranges: CO 0–1000 ppm; CAT 0–100% LEL; H2 0–1000 ppm; CO2 up to 5.0% v/v or up to 5000 ppm
• Outputs: 4–20 mA analog or RS‑485 Modbus RTU
• Communications: Bluetooth 4.0 (BLE); Modbus RTU
• Alarms & indicators: Integral alarm status LEDs; configurable relays (additional relays via Sensepoint 301C Gas Controller)
• Calibration: Factory‑calibrated (CAT calibrated to CH4)
• Integration: Interfaces with PLCs, HVAC, BMS and FACP
• Certifications/standards: EN/UL/IEC61010‑1; CSA‑C22.2 No. 61010‑1‑12; EN 50270; RED; FCC; BT SIG; UL2075; AS 1668.2
• Package contents: Detector unit with preinstalled sensor cartridge, two cable glands, calibration/flow cap, flexible adaptor tube, tube clips
• Typical applications: residential, commercial, healthcare, parking, laboratories, manufacturing, battery rooms, refrigeration, fuel storage and confined spaces
