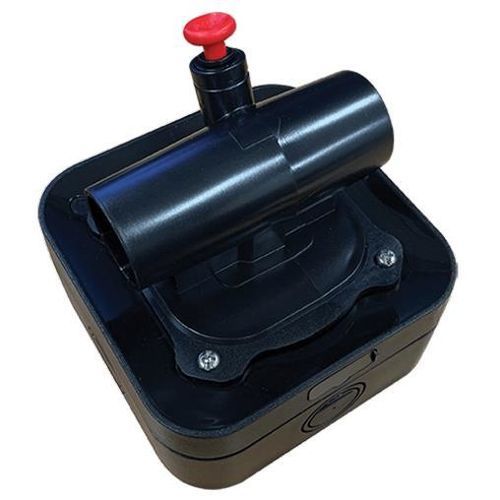

Detection gas monitoring equipment XCL-LB

for water analysisfor process monitoringfor industrial use

Overview
VESDA Sensepoint XCL – Large Bore is an aspirating gas detection solution using an ASD pipe network and multi-point (multiple-hole) sampling to provide wide-area coverage and flexible placement. The system is designed for reliable gas monitoring for occupant safety and process protection, while integrating with fire-protection strategies.

Key details
The XCL – Large Bore range offers multiple sensor options for diverse industrial applications. Detectors include a Bluetooth interface for pairing with the Sensepoint App on smart devices to streamline commissioning, configuration, calibration and bump testing, and to provide fast access to diagnostic data.

Features

• Wide range of gases supported:
  • Carbon Monoxide (CO, ppm)
  • Flammable gases (% LEL)
  • Oxygen (O2, % v/v)
  • Carbon Dioxide (CO2, % v/v, ppm)
  • Hydrogen (H2, ppm)
  • Hydrogen Sulphide (H2S, ppm)
  • Nitrogen Dioxide (NO2, ppm)
  • Ammonia (NH3, ppm)
• Aspirated sampling with multi-point/multi-hole coverage for increased detection area and design flexibility
• Remote sampling — no need to enter the protected zone for monitoring
• Centralized detector location reduces service and maintenance time
• Environmental protection for reliable long-term operation
• Integral alarm status LEDs
• Integral gas port for bump tests and calibration
• Field-replaceable sensor cartridges
• Sensepoint App (Bluetooth) for faster commissioning and maintenance
• Multiple output options: 2 configurable relays (Alarm, Fault), Analog 4–20 mA or Modbus RTU

Gas detection & ranges
Each VESDA Sensepoint XCL - Large Bore detector is added to the ASD pipe network and multiple detectors can share a single pipe. The portfolio covers sensor variants for a broad set of monitoring requirements and concentration ranges.

Accessories
For Modbus (RM) installations needing extra relay outputs, detectors can be connected to the VESDA Sensepoint 301C Gas Controller for additional relays and centralized configuration and monitoring of detector networks.

Applications

• Energy storage systems (batteries)
• Fuel storage and distribution lines
• Service tunnels
• Confined or underground spaces
• Boiler and plant rooms
• Manufacturing, petroleum and chemical facilities
• Parking garages and loading bays
• Power generation sites
• Refrigerated storage
• Waste handling facilities and landfills
• Agricultural facilities
• Water treatment and sewage plants
• Healthcare facilities, hospitals and laboratories
• Food and beverage processing
• Vehicle test facilities

Approvals

• Electrical safety: conforms to EN/UL/IEC61010-1; certified to CSA-C22.2 No. 61010-1-12
• CE - EMC: EN 50270
• Radio: RED, FCC, BT SIG
• Other approvals: UL2075 (CO and CH4), AS 1668.2

Ordering & variants
Model numbers: XCL-LB-XX-RA / XCL-LB-XX-RM (XX = gas version; RA = Analogue, Relays; RM = Modbus, Relays). Units are supplied with the main detector (preinstalled sensor cartridge), flow cap and elbows. Output variants: analog 4–20 mA or Modbus RTU with relays.

Available documents (names)
Data Sheet; Engineering Specifications; Installation Manual; Quick Start Guide; App User Manual; Product Brochure; Alarm Level Setting Application Note; O2 Alarm Level Adjustment Application Note; Test Gas Equipment Application Note; Alarm Setting Calculator; FAQs; application brochures and case studies.

Caractéristiques / spécifications techniques

• Series / Model: XCL-LB (Model Nos. XCL-LB-XX-RA / XCL-LB-XX-RM)
• Sampling method: Aspirated (ASD) pipe network, multi-point/multi-hole sampling
• Supported gases: CO, flammable gases (% LEL), O2, CO2, H2, H2S, NO2, NH3
• Sensor form factor: Field-replaceable gas sensor cartridges
• Outputs: 2 x configurable relays (Alarm, Fault); Analog 4–20 mA; Modbus RTU
• Interface: Bluetooth for Sensepoint App (commissioning, configuration, calibration, bump testing)
• Indicators & service: Integral alarm LEDs; integral gas port for bump testing and calibration
• Included with detector: Main detector unit (with sensor cartridge), flow cap, elbows
• Approvals & standards: EN/UL/IEC61010-1, CSA-C22.2 No. 61010-1-12, EN 50270, RED, FCC, BT SIG, UL2075 (CO and CH4), AS 1668.2
• Accessories: Compatible with VESDA Sensepoint 301C Gas Controller for additional relays and centralized configuration/monitoring
