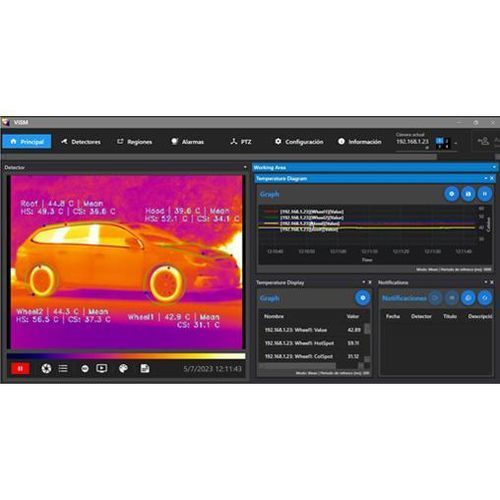

Visualization software ViSM

monitoringdata acquisition and analysisreporting

Overview
VIS-IR Software Management (ViSM) is the configuration and monitoring application required for Xtralis Failsafe Thermography Detectors (FTD). ViSM enables setup and management of detector parameters, provides real-time monitoring feeds to a laptop and collects diagnostic data for analysis. It supports sequential configuration of up to 8 cameras and offers operator control over detection zones and alarm thresholds.

Features

• Intuitive user interface for configuration and monitoring
• Vehicle discrimination algorithm
• 4 configurable Regions of Interest (ROI)
• Rate-of-Rise and fixed-temperature detection modes
• Support for Fusion / IR / Visual feed displays
• Mandatory during commissioning; optional for routine monitoring
• Real-time temperature readouts for monitored areas
• Graphical temperature-time diagrams and event notifications
• Diagnostic data collection from detectors for offline analysis

Download / Software Installation (summary)
Install ViSM on a PC that meets the minimum requirements listed below. Administrator rights are required to install executables. Installation wizards guide the user and create a ViSM desktop launch icon.

• Operating system: Windows 10
• Processor: Intel i7
• Memory: 8GB RAM
• Storage: 5GB available HDD space
• Network: Gigabit Ethernet network card
• Peripherals: mouse, keyboard and display monitor
• Administrator rights required to install executables

Resources
Xtralis VIS-IR Thermography Detector Product Guide
ViSM Setup 0.11.0.3

Technical specifications

• Product: VIS-IR Software Management (ViSM)
• Required for configuration and management of Xtralis Failsafe Thermography Detectors (FTD)
• Configures up to 8 cameras (one at a time)
• Provides up to 8 real-time monitoring feeds to a laptop
• Detection ROI configuration with shapes: spot, line, polygons
• Pre-alarm and alarm level configuration
• Color scheme selection, logging and communication features
• Collection of diagnostic data from detectors
• Fusion capability: IR and visual feed fusion
• Vehicle discrimination algorithm
• 4 configurable ROIs
• Rate-of-Rise and fixed-temperature detection modes
• Real-time temperature information and temperature-time diagram graphics
• Installation requirements: Windows 10, Intel i7, 8GB RAM, 5GB HDD, Gigabit Ethernet, mouse, keyboard, display
• Administrator rights required for installation; installer creates desktop launch icon
