Visualization software ICAM

measurementdesignmodeling

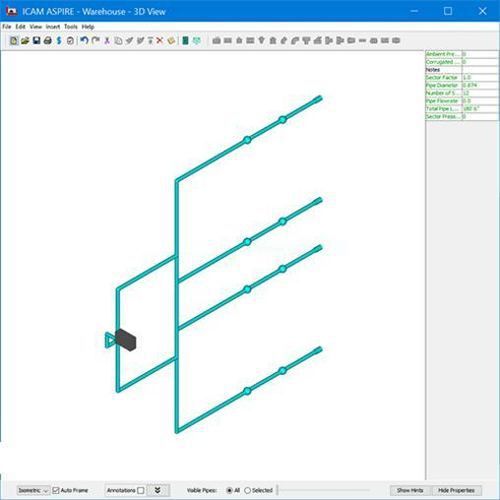

ICAM ASPIRE Pipe Network Design Software is a Windows®-based application that aids the specification and design of pipe networks for ICAM by Xtralis aspirating smoke detectors. It provides the designer with tools to speed the design process and ensure optimum network performance and installation. ASPIRE also makes design implementation easy with automatic generation of lists of all required components and an Installation Data Pack. FEATURES Ensures optimum design of ICAM aspirating smoke detection pipe networks, including branched networks Accurately models pipe network designs to environmental performance criteria Speeds the design process by automating adjustment of hole sizes Allows different detector performance requirements within one building Unique building constraints can be easily accommodated Custom design elements can be documented to guide the installation team 3D schematics to aid design and installation Professional reports and materials lists can be generated to add to client submissions Supports both metric and American measurement systems Compatible with other Windows® – based applications Automatically create commissioning documents
