OSID-DE Diagnostic is a dedicated diagnostic application for OSI-10 and OSI-90 detectors that provides live and offline system and environment data to support commissioning, maintenance and fault analysis. The tool supplies service engineers and installers with visualized measurements, event logs and imager diagnostics to accelerate troubleshooting and reporting.

Key capabilities

• Live and offline diagnostics of detector system and field environment
• Real-time visualization of system data and event logs for fault investigation

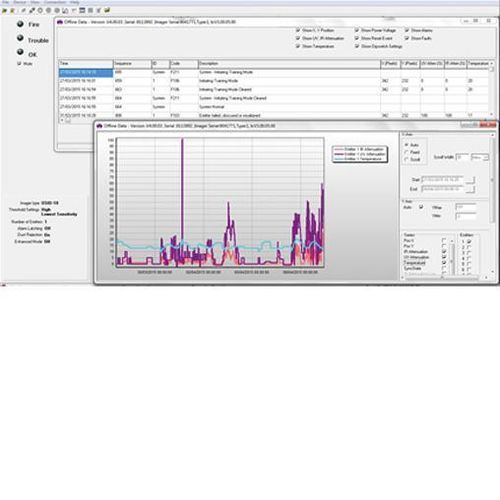

• Live visualization of normalized UV and IR values and UV/IR grey levels
• X–Y positioning view of emitters on the CMOS imager
• Displays reference levels, temperature and synchronization states
• Access to onboard event log (10,000 events) with time and date stamps
• Export log data to Excel for analysis, filtering and reporting
• Live charts and site data viewing

Features

• Intuitive user interface for field technicians
• Easy and fast software upgrades
• Alignment quality visualization
• Site data browsing and review
• Live graphing of measurements
• Onboard memory log exploration
• Fault analysis and interpretation tools
• Identification of smoke alarm types and report generation

Downloadable diagnostic tool versions (listed on product page)

• OSI-10/OSI-90 Diagnostic Tool (V5.04.09) — for UL268 7th, EN and China
• OSI-10 UL268 7th Edition Diagnostic Tool (V5.04.05)
• OSI-10/OSI-90 EN54 and OSI-90 UL268 7th Diagnostic Tool (V5.03.00)
• OSI-10/OSI-90 UL 6th Diagnostic Tool (V3.00.05)

Software requirements and upgrades

• Install only on PCs with current active Windows support from Microsoft
• Software updates are released to improve performance and add features; apply upgrades only when approved for your territory
• After each software upgrade, test the detector with the test filter to confirm correct operation

Resources / Documents (listed on product page)
OSI-10/OSI-90 Diagnostic Tool (5.04.09) for UL268 7th, EN and China Release Notes
OSI-10/OSI-90 Diagnostic Tool (5.04.09) for UL268 7th, EN and China with Instructions
OSID-DE UL7th Diagnostic Tool (V5.04.05) Release Notes
OSI-10 UL268 7th Edition Diagnostic Tool (V5.04.05) with Instructions
OSI-10/OSI-90 UL 6th Diagnostic Tool (V3.00.05) with Instructions
OSI-10/OSI-90 EN54 and OSI-90 UL268 7th Diagnostic Tool (V5.03.00) with Instructions
OSID-DE (EN) Product Guide
OSID-DE (UL) Product Guide

Technical specifications

• Platform: Windows (requires PCs with current active Windows support)
• Onboard event log capacity: 10,000 events with time and date stamps
• Data export: log files exportable to Excel format
• Real-time measurements: normalized UV and IR values; UV and IR grey levels
• Imager diagnostics: X–Y emitter positioning on CMOS imager, reference levels, temperature, synchronization states
• Operational modes: live diagnostics when connected to imager in the field; offline evaluation from saved logs
• Software upgrade: in-field upgrade guided by the tool; detector testing with test filter recommended after upgrade
