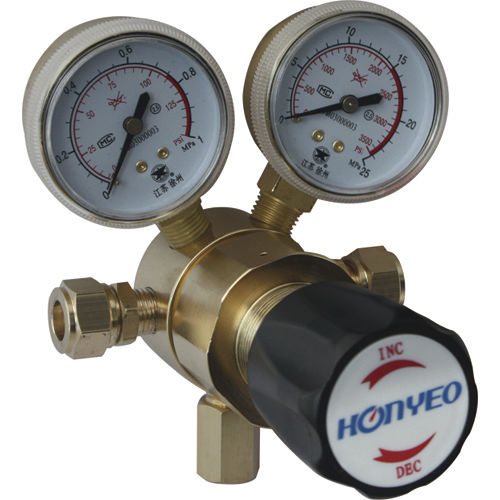

Gas pressure regulator JG series
diaphragmsingle-stagebrass

gas pressure regulator
gas pressure regulator
Add to favorites
Compare this product


Characteristics

Product
gas
Technology
diaphragm
Number of stages
single-stage
Material
brass
Applications
industrial
Other characteristics
with pressure gauge
Pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Flow

650 l/min
(171.71 us gal/min)

Description

The JG series is a unit manufactured by Hyongye company. It is a pressure regulator with an inlet and an outlet connection. It is applicable on various areas such as research laboratories, laser gas systems, manifold systems, petroleum industry and on testing of various components. Features & Specifications ●Single stage regulation. ●Body is hard seal with diaphragm ●Different ports design ●Different connectors upon requests ●Easy inner purging ●Panel or wall installation Max input pressure: 3.5MPa, 15MPa Output pressure: 0.12MPa, 0.2MPa, 0.45MPa, 0.75MPa, 1.2MPa Temperature: -20degree----60degree. In/Out-leakage rate: 2 x 10-9 Pa-cbm/s Material:brass/chrome plated brass If you have any special needs, pls kindly contact us soon
