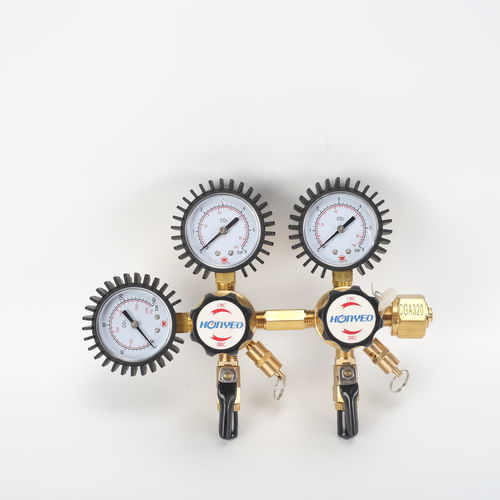

Gas pressure regulator YQJX-N1/-N2for CO2diaphragmbrass
Add to favorites
Compare this product
Characteristics
- Product
- gas, for CO2
- Technology
- diaphragm
- Material
- brass, PTFE
- Applications
- for food applications
- Other characteristics
- compact, with pressure gauge, double
- Pressure
Min.: 2.21 bar
(32.05 psi)Max.: 137.9 bar
(2,000.07 psi)- Flow
0.2 m³/h
(7.06 ft³/h)- Orifice diameter
Min.: 0 mm
(0 in)Max.: 600 mm
(23.622 in)
Description
Product features
Technical parameters
Overall dimensions / Packaging
Characteristics / Technical specifications
- Brass valve body; metal diaphragm. All sealing materials are PTFE to prevent secondary contamination of gases and food products.
- Simple and compact construction, small size and low weight; durable; available with dual outlet option.
- Built-in check-valve function to prevent external gas backflow into the regulator.
- High-pressure-resistant design with excellent tightness.
Technical parameters
- Inlet pressure: 1500 psi
- Inlet gauge range: 2000 psi
- Outlet pressure: 32 psi
- Outlet gauge range: 40 psi
- Inlet connection: CGA320
- Outlet connection: 7/16-20UNF (on request)
- Nominal flow: 0.2 m3/h
- Pressure stabilization: with a 1 MPa change in inlet pressure, outlet pressure changes by no more than 7 × 10-3 MPa (valid for gas source range 5–15 MPa).
- Internal and external leakage rate: < 5 × 10-8 Pa·m3/s
Overall dimensions / Packaging
- Packaging size (option 1): 195 x 210 x 135 mm
- Packaging size (option 2): 260 x 210 x 135 mm
Characteristics / Technical specifications
- Valve body material: brass
- Diaphragm: metal diaphragm
- Sealing material: PTFE (suitable for gas and food applications)
- Integrated check-valve function
- High pressure resistance and good tightness
- Connections: CGA320 (inlet), 7/16-20UNF (outlet, on request)
- Gauge ranges (inlet/outlet): up to 2000 psi / up to 40 psi
- Nominal flow and stability properties as specified above
- Very low leakage rate < 5 × 10-8 Pa·m3/s
