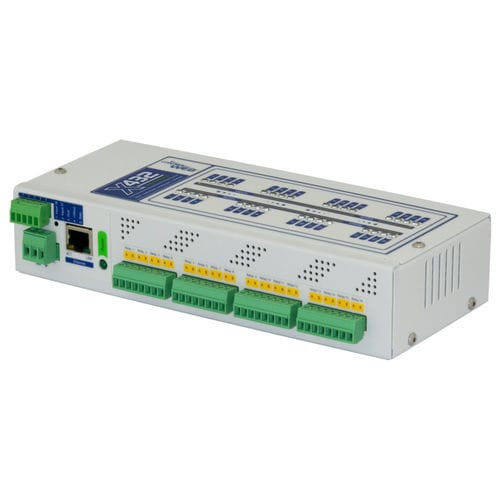

Digital input programmable logic controller X-432™

analog inputs4-Irugged

Stand alone programmable I/O controller or a capable RTU with 16 relays, 18 digital inputs, 4 analog inputs and support for up to 16 temperature sensors. Powerful Remote Monitoring & Control All in One Device Powerful Task Management: no-code task builder with conditional and scheduled logic. Onboard I/O: no I/O card needed with many endpoints for powerful remote monitoring and control. Rugged Enclosure: strong metal enclosure protects internal hardware from unforgiving environments. Cost-Effective: serious bang for your buck with programmable onboard logic paired with a lot of I/O. 16 Relays 2A | 30VDC, 30VAC Independently control: Low-voltage lights, motors, locks, solid-state relays (connected to larger loads), etc. 4 Analog Inputs (Multi-Function) 0-5 VDC Configurable for single-ended, differential or 4-20mA (0-20mA) input operation. Monitor nearly any industrial or commercial sensor. 18 Digital Inputs 18 total | 16 Optically-Isolated | 1-16 3-26VDC, 17-18 0-5VDC Monitor on/off state or configure as digital counters or frequency measurement. Monitor any contact closure. Up to 16 Temp/Humidity Sensors 1-Wire Bus Monitor up to 16, 1-Wire temp sensors or 8 1-Wire humidity sensors (not included).
