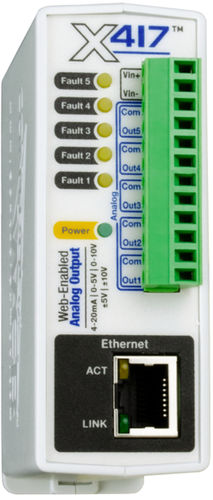

Analog output module X-417™ series

LANnetworkvoltage

Each voltage or current output can be programmed individually. The X-417 is designed for remote connectivity from the ground up. Industrial Analog Output Control The X-417™ module has up to 5 analog outputs. Each channel is individually programmable to output a voltage or current. The intuitive embedded interface includes data logging for each analog channel. This makes record-keeping, validation, and data acquisition a breeze. It can be accessed and controlled over any TCP/IP network. This includes remote monitoring via the Internet, on the ControlByWeb cloud service or on your Local Area Network (LAN). Up to 5 Analog Outputs (Multi-Function) The five individually programmable analog outputs on the X-417 feature precision 16-bit digital to analog converters (DACs). Each channel can be set to either voltage (0-5V, 0-10V, ±5V, ±10V) or current (4-20mA) outputs. Control damMonitor and Control up to 64 I/O The X-417 supports peer-to-peer, over-the-network communication between other ControlByWeb modules, and instantaneous communication between 400 Series products. This means the X-417 can monitor and control I/O on other 400 Series products as if directly connected. It can communicate with up to 32 modules and allows you to monitor and control up to 64 I/O points. Simply install them on the same network or connect them on separate networks via port forwarding.per motors, variable frequency drives (VFDs), actuators, and more.
