Electric cylinder T series
ball screwfor robotssingle-axis

electric cylinder
electric cylinder
Add to favorites
Compare this product


Characteristics

Type
electric
Technology
ball screw
Applications
for robots
Other characteristics
compact, precision, double, single-axis
Stroke

Min.: 50 mm
(1.969 in)

Max.: 1,050 mm
(41.339 in)

Force

Min.: 19 N

Max.: 683 N

Speed

Min.: 120 mm/s

Max.: 1,800 mm/s

Repeatability

0.01 mm, 0.02 mm
(0 in, 0 in)

Description

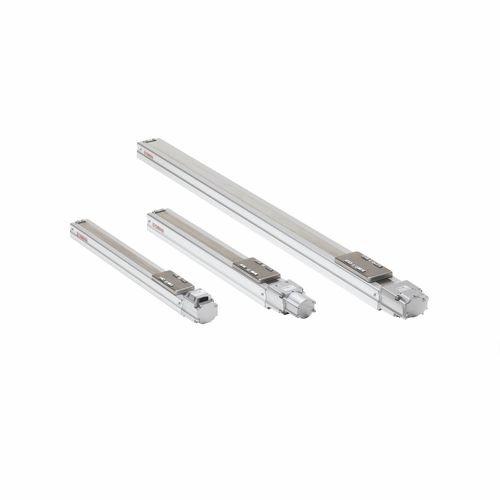

Introduces the single-axis robot type T, frameless structure model. (Compact size) Double appeal of a compact body and low price. Ideal in applications as an actuator directly installed on a mount. 4-row circular arc groove type 2-point contact guide that is resistant to large moment load is adopted.Note 1 4-row circular arc groove type 2-point contact guide with less differential slip is used for the linear guide. This guide has less ball differential slip due to its structure when compared to the 2-row Gothic arch type 4-point contact guide and maintains a satisfactory rolling movement even if a large moment load is applied or the installation surface precision is poor. The guide has characteristics that are difficult to malfunction, such as unusual wear and provides excellent reliability. Resolver with excellent environment resistance is used for the position detector. A resolver is used for the position detector. The resolver has a simple and rigid structure without using electronic components and optical elements. Detection problems due to electronic component breakdown, dew condensation on or oil sticking to the disk that may occur in optical encoders do not occur in the resolver. The resolver provides excellent durability. Additionally, as the absolute specifications and incremental specifications use the same mechanical specifications and common controller, desired specifications can be selected only by setting parameters. Furthermore, even when the absolute battery is consumed completely, the robot can still operate as the incremental specifications. 03Long service life greatly reduces the maintenance cost.
