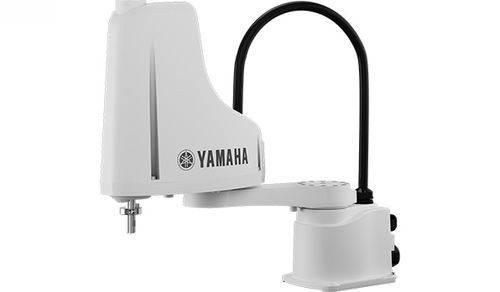

SCARA robot YE series

4-axisfor assemblypackaging

Overview
The YE series is a cost-effective SCARA robot family for industrial automation tasks such as pick-and-place, assembly, packaging, inspection and material handling. Designed for stable, repeatable operation, the YE series supports production lines in electronics, automotive components, consumer goods and general manufacturing.

Main specifications

• Arm length: 400 mm to 710 mm
• Maximum payload: 4 kg to 10 kg

Key features

• Reduced operating costs: Absolute encoder backup battery and home-position storage relocated to the robot body; number of backup batteries reduced from four to one to lower maintenance and running costs.
• Through-hole shaft and cap options: Optional through-hole shaft and through-hole cap allow routing of pneumatic tubing and electrical wiring through the robot body to simplify mounting and reduce cable strain.
• Optional brake release switch: Provides manual Z-axis release during installation or adjustment when held; brake re-engages when released. (Brake release switch location is the same on YE models as shown for the YK-XE image.)
• Multifunctional controller compatibility: Compatible with RCX440 controller, enabling integrated vision RCXiVY2+ and support via RCX-Studio2020 for a wide range of automation tasks.

FAQ (selected)

• Does the YE comply with CE or KCs standards? No. YE does not comply with CE or KCs. Use the YK-XE model if CE or KCs compliance is required.
• Is the RCX340 controller compatible with YE? No. Use the RCX440 controller; RCX340 is not compatible with YE.

Technical specifications

• Series / Model name: YE series
• Arm length range: 400 mm to 710 mm
• Maximum payload range: 4 kg to 10 kg
• Typical applications: pick-and-place, assembly, packaging, inspection, material handling
• Target industries: electronics, automotive components, consumer goods, general manufacturing
• Backup battery: Absolute encoder backup battery relocated to robot; number of backup batteries reduced from four to one
• Options: Through-hole shaft and through-hole cap for cable/tubing routing; optional brake release switch (manual Z-axis release)
• Compatible controller: RCX440 (RCX340 not compatible)
• Integrated vision support: RCXiVY2+ (when used with RCX440)
• Support software: RCX-Studio2020
• Regulatory compliance: YE does not comply with CE or KCs (use YK-XE for CE/KCs compliance)
