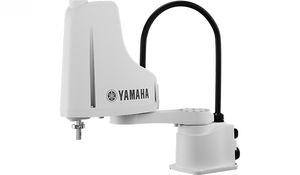

SCARA robot YK120XG
4-axistransferfor assembly

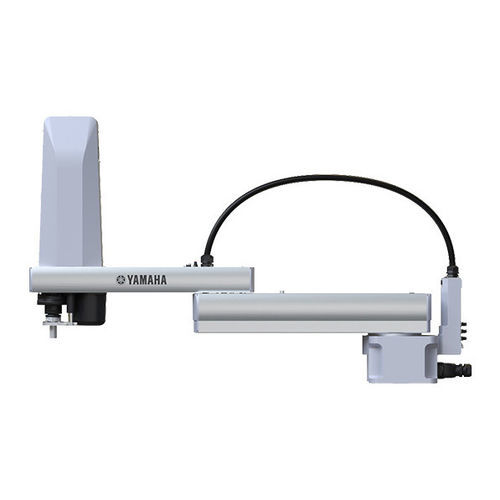

SCARA robot - YK120XG - Yamaha Motor Co.,Ltd. - 4-axis / transfer / for assembly
SCARA robot - YK120XG - Yamaha Motor Co.,Ltd. - 4-axis / transfer / for assembly
SCARA robot - YK120XG - Yamaha Motor Co.,Ltd. - 4-axis / transfer / for assembly - image - 2
Add to favorites
Compare this product

Characteristics

Type
SCARA
Number of axes
4-axis
Function
handling, for assembly, transfer
Application domain
for industrial applications, for heavy loads
Other characteristics
compact, high-speed
Payload

Min.: 10 kg
(22.046 lb)

Max.: 50 kg
(110.231 lb)

Reach

Min.: 70 cm
(27.56 in)

Max.: 120 cm
(47.24 in)

Description

Overview
Large-size SCARA robots suitable for assembly and transfer of large or heavy parts. New product in the series: YK1200XG.

Key notations
  • Arm length: 700 mm to 1200 mm
  • Maximum payload: 10 kg to 50 kg


Features
  • 01 Internal structure: Internal design delivering high rigidity and high accuracy.
  • 02 Completely beltless structure: A totally beltless design (ZR axis direct coupling) reduces wasted motion, preserves long-term accuracy and minimizes maintenance (except for large model YK1200X).
  • 03 High speed: Improved maximum speed and gear/motor ratio for shorter cycle times and better tact time on long-distance movements.
  • 04 Improved maintenance features: Removable front/upward covers separated from cables for easier maintenance; harmonic gear is grease-sealed on YK-500XG to YK1000XG eliminating frequent grease replacement.
  • 05 R-axis inertia moment capacity: Low R-axis inertia reduces cycle time with large offsets; speed reducer directly coupled to the rotating axis provides high allowable inertia moment enabling high-speed operation with offsets.
  • 06 Compact: Optimized cable routing, compact motor selection and extrusion-based structure result in the smallest dimensions in its class.
  • 07 Resolver (robust position detection): Resolver-based position detector enables robust closed-loop control resistant to temperature, shock, electrical noise, dust and oil; backup circuit retention extended to approximately one year.
  • 08 Zone control: Automatic setting of optimal maximum acceleration/deceleration based on arm posture at start/end of motion to prevent motor/gear overload and extract full power safely.
  • 09 Hollow shaft and tool flange options: Optional hollow shaft for easy wiring to end tools and optional tool flange for tool clamping (available on specified models).
  • 10 History: Over 30 years of SCARA robot development with continuous improvements across the product family.


Available datasheets / model documents
  • Datasheets available for YK700XGL, YK700XG, YK800XG, YK900XG, YK1000XG, YK1200X, YK1200XG and related model PDFs.


Technical specifications
  • Series / model name: YK-XG (Large type SCARA robots)
  • Arm length range: 700 mm to 1200 mm
  • Payload range: 10 kg to 50 kg
  • Beltless direct-drive ZR axis (except YK1200X)
  • Harmonic gear grease-sealed on YK-500XG to YK1000XG
  • Resolver position detector with robust environmental resistance and ~1 year backup
  • Zone control: automatic acceleration/deceleration setting by arm posture
  • Selectable options: hollow shaft and tool flange (specified models such as YK250XG, YK350XG, YK400XG, YK500XGL, YK600XGL)
  • High allowable R-axis inertia moment for improved handling of offset/heavy loads
  • Compact body design through optimized cable layout and compact motor
