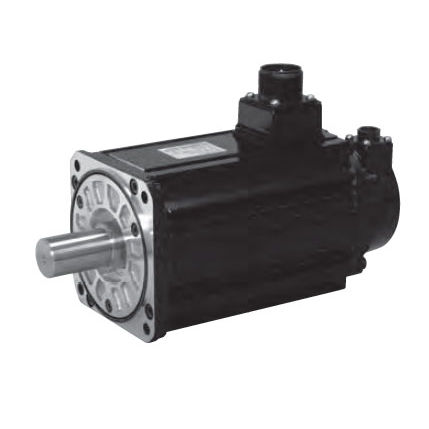

AC motor / 400 V / high-power / low-inertia
SGMSV

Add to MyDirectIndustry favorites
Compare this product
AC motor / 400 V / high-power / low-inertia AC motor / 400 V / high-power / low-inertia - SGMSV
{{requestButtons}}

Characteristics

  • AC/DC:

    AC

  • Voltage :

    400 V

  • Other characteristics:

    high-power, low-inertia, IP67, for industrial applications

  • Torque:

    Max.: 47.6 Nm (35.108 ft.lb)

    Min.: 3.18 Nm (2.3454 ft.lb)

  • Power:

    Max.: 7,000 W (9.517 hp)

    Min.: 1,000 W (1.36 hp)

  • Rotational speed:

    Max.: 6,000 rpm (37,699.11 rad.min-1)

    3,000 rpm (18,849.56 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

Description

Super high power
Wide selection: 1.0 kW to 7.0 kW capacity, holding brake option
Mounted serial encoder: 20 bits, high resolution
Protective structure: IP67 (Not including the IP22 compliant enclosure for 7.0 kW motor)
