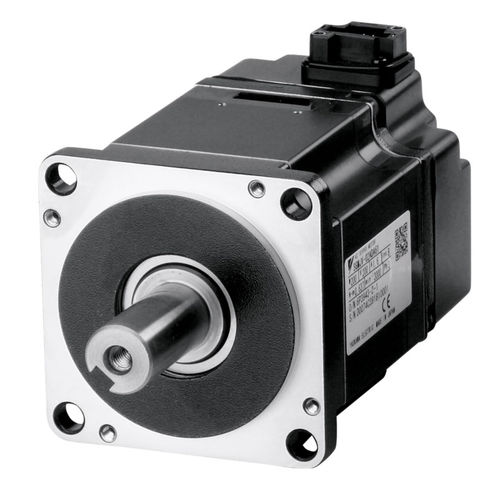

AC servomotor SGMJVfoodhigh-resolution
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Applications
- food
- Other characteristics
- high-resolution
- Power
Min.: 50 W
(0.07 hp)Max.: 750 W
(1.02 hp)- Torque
Min.: 0.159 Nm
(0.117272 ft.lb)Max.: 8.36 Nm
(6.16602 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 6,000 rpm
(37,699.1118 rad.min-1)
Description
SGMJV Model Features
Medium inertia, small capacity
Instantaneous peak torque (350% of rated torque)
Mounted high-resolution serial encoder: 13 bit or 20 bit
Application Examples:
Semiconductor equipment
Chip mounters
PCB drilling stations
Robots
Material handling machines
Food processing equipment
