DC motor SGMMV

ACsynchronous24 V

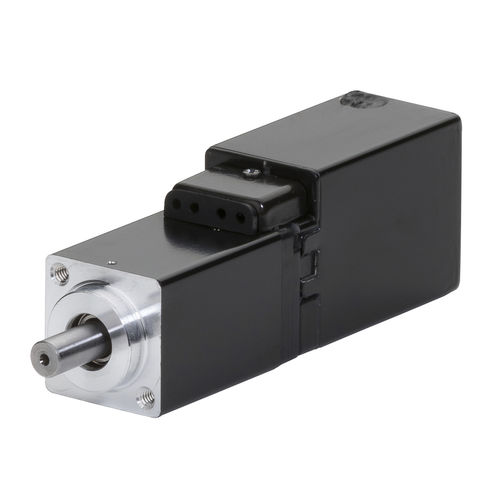

High dynamics and precision in smallest dimensions, has always been a demand in mechanical engineering. YASAKAWA provides ultra compact servo motors, the Sigma-5 Mini series. With a fl ange diameter comparable to a one cent coin, it allows a variety of new applications with servo motors. Sigma-5 Mini motors offer highest performance with minimal size for maximum efficiency. Extensive lineup of super compact, super small capacity products Two flange sizes (15 mm and 25 mm) available 24 VDC and 48 VDC inputs, plus 200 VAC input and brake for the 25 mm version This extensive lineup meets customer applications and requirements in detail High resolution 17-bit (131,072 pulses/revolution) absolute value serial encoder for high-precision positioning SERVOPACK parameter settings also enable use as an incremental type Maximum speed 6000 rpm High speed (rated speed 3000 rpm and maximum speed 6000 rpm) improves device takt time
