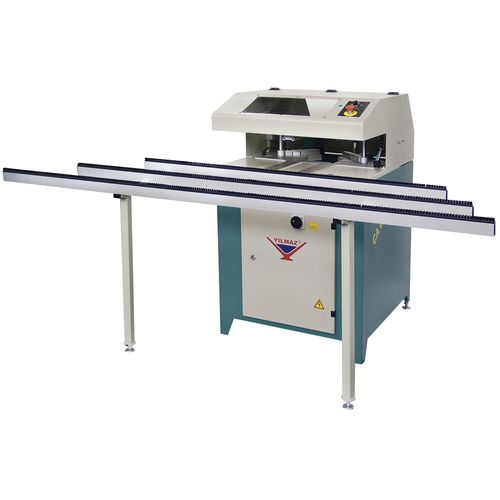

Dry cleaning machine CA 601

semi-automaticcornervertical

CA 601 Single Corner Cleaning Machine used to clean lower and upper surfaces and outer corners of PVC profiles welded at 90° angle STANDART ACCESORIES Air gun OPTIONAL ACCESSORIES Corner cleaning cutter set Special corner cleaning cutter set Cleaning cutter for colored profiles V type of cleaning cutter for white profiles GENERAL FEATURES High quality stripping and cleaning operations by means of the hydro-pneumatic system Processing capability for maximum profile dimension: W130-H180 mm Processing capability for minimum profile dimension: W30-H30 mm Min. inner and outer square size according to W30 and W60 mm of profile width: L350 x L350 and L380 x L380 mm Pneumatically working serial blade changing function that makes working easier Fixing the workpiece firmly by means of the vertical and horizontal clamps PLC control system Centring system to fit the profiles properly on the setsquare Robust machine stand Stripping blade levels are adjustable according to laminated and unlaminated profiles Single or multi cleaning operations can be processed Automatic start up feature when profile placed on the table Stops automatically after stripping and cleaning operation
