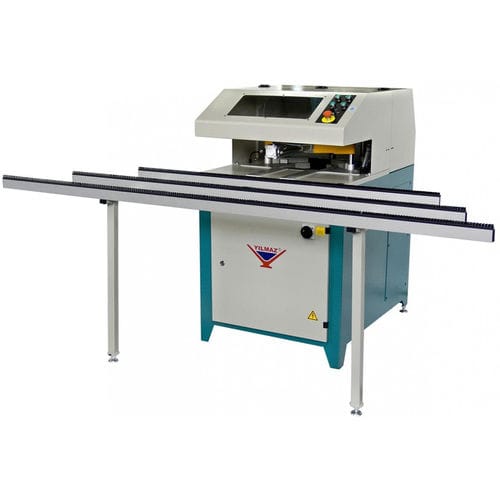

Dry cleaning machine CA 603

automaticcornerrobust

CA 603 Single Corner Cleaning Machine is used for striping of bottom and top surfaces and cleaning outer corners of 90° PVC cleaning profiles STANDART ACCESORIES Air gun Profile support table with brushed Special corner cleaning cutter set OPTIONAL ACCESSORIES Cleaning cutter for colored profiles V type of cleaning cutter for white profiles GENERAL FEATURES Processing capability of 4 different PVC profile 4 different cutter set can be mounted on both block Robust machine stand Centring system to fit the profiles properly on the setsquare High quality stripping and cleaning operations by means of the hydro-pneumatic system Processing capability for max. profile dimension: W130-H180 mm Processing capability for min. profile dimension: W30-H50 mm Min. inner and outer frame sizes for width W:30 and W:60 mm of profiles: L:350 x L:350 and L:380 x L:380 mm Pneumatically working serial blade changing function that makes working easier Fixing the workpiece firmly by means of the vertical and horizontal clamps Stops automatically after stripping and cleaning operation PLC operation system Stripping blade levels are adjustable according to laminated and unlaminated profiles
