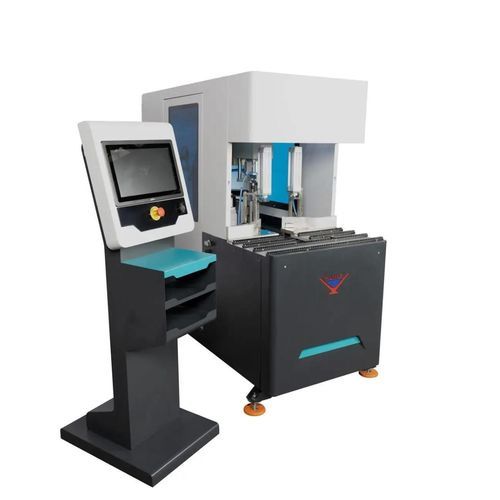

Weld cleaning machine CNC 609

The CNC 609 is a corner cleaning machine designed to remove welding chips from PVC profiles welded at a 90° angle. The CNC 609 is configured with two servo drive motors; a related model, the CNC 611, uses four servo drives.

Standard accessories

• 11 tools in total: cleaning saw, internal scraping blades and milling cutters
• Brushed window support table

Optional accessories

• Line Harmonization Package (for CNC 609 R)

General features

• Independent parameter settings for each unit according to frame profiles
• Automatic frame and sash profile recognition system
• Can be integrated later into an automatic line with Four Corner Welding Machine (DK 540), Cooling Unit (SA 251) and Rotating Robot (SA 261)
• Upper and lower surfaces cleaned by separate independent cleaning units (CNC 611)
• Profile width and height measurement system
• 11 sets of automatic profile cleaning knives; separate knives for colored and white profiles
• Memory capacity for 65000 different profiles
• Windows-based industrial PC with 15" LCD colour touch screen and portable touch screen control panel
• Remote connection via Internet for technical support
• Manual feed-rate adjustment on control panel and program transfer via USB
• Low pressure control valve, automatic cartridge lubrication system and phase control equipment
• Processing capacity: 200–210 window frames in 8 hours (CNC 609); 240–250 frames in 8 hours (CNC 611)

Catalogue / Documents

• Product brochure: CNC-609-611.pdf

Technical specifications

• Electrical: 3 kW / 400 V AC 3P PE 50/60 Hz
• Spindle speed: 18,000 RPM
• Cutting unit: 6,000 RPM — D: Ø250 - d: 30/32 mm
• Air flow: 180 L/min
• Air pressure: 6–8 Bar
• Dimensions (approx.): 231 x 240 x 177
• Weight (approx.): 790.0
• Memory capacity: 65000 profiles
• Control: Windows-based industrial PC with 15" LCD touch screen
