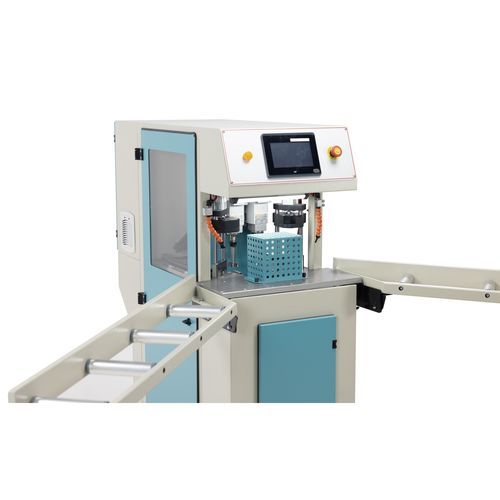

Vertical milling machine WGM 202

for PVCfor profilesfor window and door frames

Machine that mills the end surfaces of PVC profile gaskets before welding to ensure smooth corner joints and to eliminate protruding gasket issues.

Standard accessories

• 4 milling cutters installed
• Air gun

Optional accessories

General features

• Pre-weld milling of gasket and profile set to prevent gasket protrusion after welding
• Equipped with 4 milling blades
• Manual 6-station revolver for different profile systems
• Capability to mill single or double profiles simultaneously
• Can mill up to 2 gaskets in the sash profile and 2 gaskets in the base profile
• Ability to mill middle gasket in frames using this gasket type
• 7" touch screen panel

Technical specifications

• Model: WGM 202
• Manufacturer: YILMAZ MACHINE
• Milling blades: 4
• Revolver: Manual, 6-station (adaptable to different profile systems)
• Profiles milling: Single or double profile simultaneously
• Gasket milling capacity: Up to 2 gaskets in sash profile and 2 gaskets in base profile; supports middle gasket milling
• Control interface: 7-inch touch screen panel
• Primary function: Pre-weld milling of gasket end surfaces to ensure smooth corner connections and eliminate protrusions
