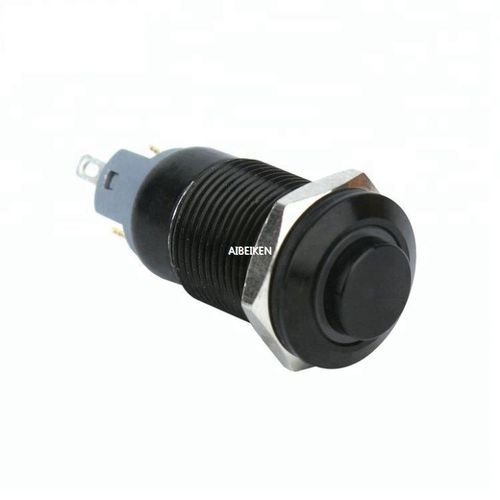

LED-illuminated push-button switch B12S-G10Z-E black

touchIP65green LED

Quick Details Place of Origin:Zhejiang, China (Mainland) Operation Type:Latching Model Number:IB12S-G10Z-E black Switch Combination:1NO Protection Level:IP65 Head Type:High round head Max. Current:3A Terminal type:4 Pin terminais Max. Voltage:250V Enclosure Material:Brass nickelage Product Name:12mm push button switch Led Color:Red/orange/yellow/blue/white/green Mounting Hole Size:12mm Led Voltage:2V/3V/6V/12V/24V/36V/1 Product Description Product Name: Push Button Switch Model: IB12S-G10Z-E black Mounting Hole: 12mm Operation Type: Latching Switch Combination: 1NO Head Type: High round head Terminal type: 4 Pin Terminais llluminanted or not: Yes Led Voltage: 12V (or 0V/2V/3V/6V/12V/24V/110V/220V/others) Led Color: Red, green,yellow, orange, blue.white llluminated Type: Ring llluminated Enclosure Material: Brass nickelage Delivery Days: 1-3 days Contact Résistance: 50 mQ max Insulation Résistance: 1000MQ Min Dielectric Intensity: 2000VAC Operating Température: -20°C ~+55°C Customized symbol,colored housing or Connector: Acceptable and with fast shipping Accessories: Nut, Rubber Gasket,Resistor Common description for switch: (1) Momentary function: When you push the switch and then move your finger, the actuator will back to the original position. (2) Latching function: When you press the switch, it will be ON and keep locking until you press again, it will return to the original position.
