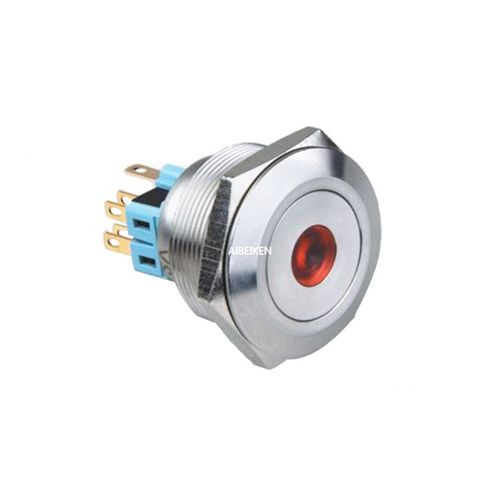

Touch push-button switch IB40S-P11F-D

waterproofIP67illuminated

Quick Details Place of Origin:Zhejiang, China (Mainland) Model Number:IB40S-P11F-D Protection Level:IP67 Max. Current:5A Max. Voltage:250V Product Name:Waterproof electric switch Mounting Hole Size:40mm Operation Type:Momentary Switch Combination:1N01NC Head Type:Flat round head Terminal type:6 Pin terminais Enclosure Material:Stainless Steel LED Volt& Color:24V Blue Dot Led Symbol:NO Connector Customized:Acceptable Product Description Product Name - Push Button Switch Model - IB40S-P11F-D Mounting Hole - 40mm Operation Type - Momentary Switch Combination - 1N01NC Head Type - Fiat round head Terminal type - 6 Pin Terminais llluminanted ornot - Yes Led Voltage: 12V (or 0V/2V/3V/6V/12V/24V/110V/220V/others) Led Color: Blue(Red: Green, Yellow,, White,Orange,Purple Bi-color or tri-color available) Illuminated Type: Dot led illuminated Enclosure Material: Stainless Steel Delivery Days: 1-3 days Contact Résistance: 50 mΩ max Insulation Résistance: 1000MΩ Min Dielectric Intensity: 2000VAC Operating Temperature: -20°C ~+55°C Customized symbol, colored housing or Connector: Acceptable and with fast shipping Accessories: Nut, Rubber Gasket,Resistor Common description for switch: (1) Momentary function: When you push the switch and then move your finger, the actuator will back to the original position. (2) Latching function: When you press the switch, it will be ON and keep locking until you press again, it will return to the original position.
