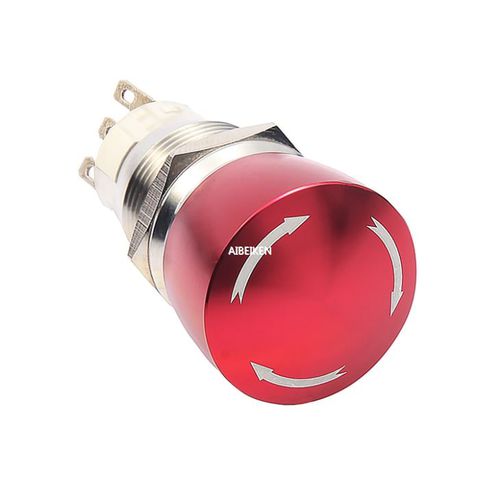

Mushroom push-button switch IB19C-ES

emergency stopIP67non-illuminated

Quick Details Place of Origin:Zhejiang, China (Mainland) Model Number:IB19C-ES Protection Level:IP67 Max. Current:3A Max. Voltage:250V Product Name:Emergency metal push button Mounting Hole Size:19mm Switch Combination:1 N01 NC Head Type:Mushroom head Terminal type:3 Pin terminals Enclosure Material:RED anodized LED Volt& Color:Non-illuminated Symbol:NO Connector Customized:NO Product Description Product Name: Push Button Switch Model: IB19C-ES Mounting Hole: 19mm Switch Combination: 1N01NC Head Type: Mushroom head Terminal type: 3 Pin Terminais Enclosure Material: Brass nickelage Delivery Days: 1-3 days Contact Résistance: 50 mQ max Insulation Résistance: 1000MQ Min Dielectric Intensity: 2000VAC Operating Température: -20°C ~+55°C Customized symbol, colored housing or Connector: Acceptable and with fast shipping Accessories: Nut, Rubber Gasket,Resistor Common description for switch: (1) Momentary function: When you push the switch and then move your finger, the actuator will back to the original position. (2) Latching function: When you press the switch, it will be ON and keep locking until you press again, it will return to the original position.
