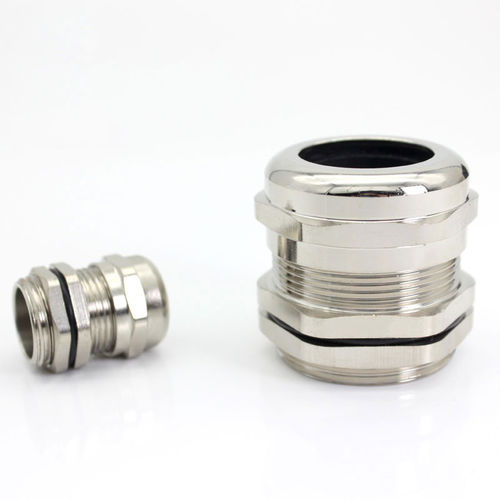

Waterproof cable gland JX-M-L series
nickel-plated brasschemical-resistantthreaded

waterproof cable gland
waterproof cable gland
waterproof cable gland
waterproof cable gland
Add to favorites
Compare this product


Characteristics

Material
nickel-plated brass
Protection level
waterproof, chemical-resistant
Other characteristics
threaded, straight, metric, hexagonal
Cable diameter

Min.: 2 mm (0.08 in)

Max.: 80 mm (3.15 in)

Operating temperature

Min.: -40 °C (-40 °F)

Max.: 120 °C (248 °F)

Thread diameter

Min.: 8 mm (0.31 in)

Max.: 100 mm (3.94 in)

Description

Thread Size: Metric Thread Material: Brass with nickel plated Claw: PA Sealing and sealing ring: NBR Product Certification: CE certification,TUV and ISO9001. Patent: National Utility Model Patent No is ZL201020530888.7 Protection Degree: IP68 Working temperature: -40℃to 100℃short time to 120℃ Thread Length: Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board.Longer thread type can be produced as your requests. Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent. More options: Customization is acceptable.Welcome to inquire.
