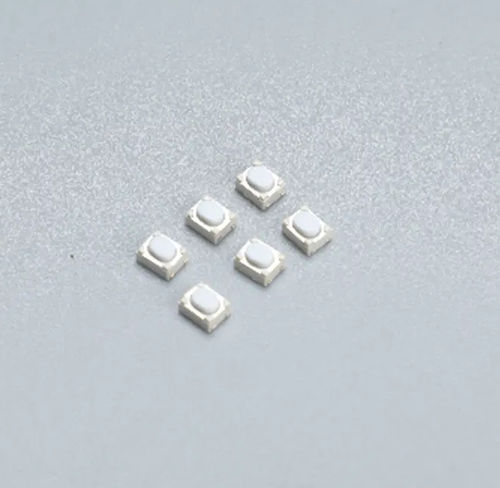

Tactile switch A01-13-F02_3X4X2.5

single-polestandardDC

1.1 Scope This specification covers the requirements for single key switches which have no key top(TACT SWITCHES:MECHANICAL CONTACT). 1.2 Operating Temperature Range -20 to +70 ℃ ， (normal humidity,normal press.) 1.3 Storage Temperature Range -25 to +85 ℃ ， (normal humidity,normal press.) 1.4Test Conditions Tests and measurements shall be made in the following standard conditions unless otherwise specified: Normal temperature (temperature 5 to 35 ℃) Normal humidity (relative humidity 45 to 85% ) Normal pressure (pressure 860 to 1060 mbars) 2.TYPE OF ACTUATION Tactile feedback 3.CONTACT ARRANGEMENT 1 1 1 poles 1 throws (Details of contact arrangement are given in the assembly drawings.) 4.MAXIMUM RATINGS DC 12 V 50 mA 5.Appearance and structure 5.1：Appearance:It should no obvious shrinkin 、upset metal、Scrape、plating path well-distributed and no coming off. 5.2：Size:Making (drawing attached) 2 6. General specification 6.1Electrical properties
