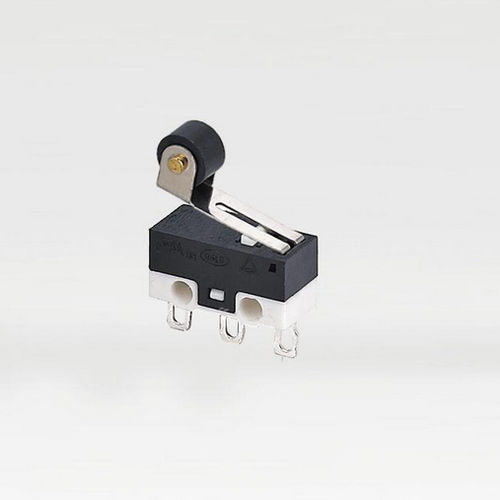

Lever micro-switch HK-10-032SPDTCQCC-US UL
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- SPDT
- Norms
- CQC, C-US UL
- Mounting
- board-mount, PCB
- Other characteristics
- AC, DC, safety, subminiature
- Primary current
Min.: 1 A
Max.: 3 A
- Voltage
125 V, 250 V
- Operating temperature
Min.: 85 °C
(185 °F)Max.: 85 °C
(185 °F)
Description
Product name
Micro tripod mouse click switch with straight and bent pins
Summary
Current: 1A/3A
Voltage: 125V/250V AC T85
Approvals: CQC, CE, TUV, C-UL
Key features
Characteristics / Technical specifications
Micro tripod mouse click switch with straight and bent pins
Summary
Current: 1A/3A
Voltage: 125V/250V AC T85
Approvals: CQC, CE, TUV, C-UL
Key features
- Micro switch
- Ratings up to 1A/3A 125/250VAC and 30VDC
- Available with or without lever; roller lever option
- Solder and PCB terminals
- Safety certifications
Characteristics / Technical specifications
- Model: HK-10-032
- Series: HK-10 Ultra Subminiature Basic Switch
- Type: Micro tripod / mouse click switch (straight and bent pins)
- Current rating: 1A or 3A
- AC voltage rating: 125V / 250V AC
- DC voltage rating: up to 30V DC
- Temperature rating: T85
- Terminals: solder terminals and PCB terminals
- Actuator options: with or without lever; roller lever available
- Approvals / Certifications: CQC, CE, TUV, C-UL
- Safety: safety certification(s) indicated
