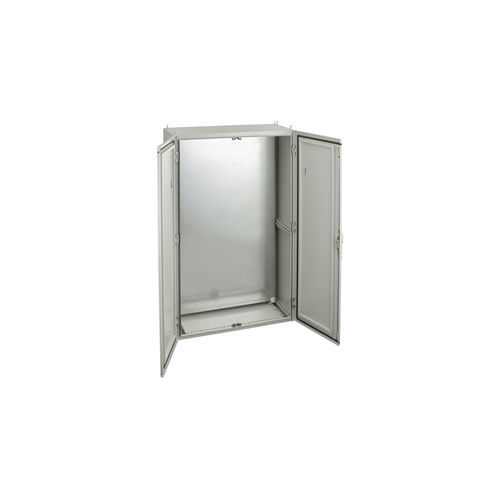

Distribution electrical enclosure GCI seriescontrolswitching19" rack
Add to favorites
Compare this product
Characteristics
- Function
- distribution, control, switching
- Configuration
- floor-mounted, 19" rack
- Material
- sheet steel
- Protection level
- IK 10, IP55
- Application
- power distribution, industrial, circuit breaker, for low-voltage power distribution
- Other characteristics
- for harsh environments, locking, double-door
- Width
Min.: 1,000 mm
(39.4 in)Max.: 1,200 mm
(47.2 in)- Height
Min.: 1,400 mm
(55.1 in)Max.: 2,200 mm
(86.6 in)- Depth
Min.: 400 mm
(15.75 in)Max.: 800 mm
(31.5 in)
Description
GCI Monoblock cabinet(One-piece) series-Double door
GCI monoblock cabinet(One-piece)
Material: Enclosure body,gland plate: 1.5mm galvanised steel + RAL 7035 powder coating
Front door: 1.5mm sheet steel + RAL 7035 powder coating
Mounting plate: 2.0mm sheet steel galvanised plate (for single door)
Mounting plate: 2.5mm sheet steel galvanised plate (for double door)
IP rate: IEC EN60529,IP55
IK rate: IK 10
Standard: IEC 62208(enclosure standards)
Supply include: Enclosure body,front door,mounting plate locks,hinges,gland plates rear panel(3 options:by screw fixed/ welding on the structure/rear door with lock)
Optional: Without plinth parts
