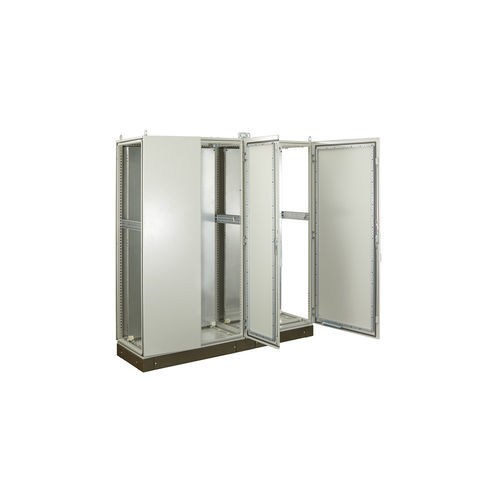

Distribution electrical enclosure GI-1 series
controlswitchingcustom

Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom - image - 2
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom - image - 3
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom - image - 4
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom - image - 5
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom - image - 6
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom - image - 7
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom - image - 8
Distribution electrical enclosure - GI-1 series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / custom - image - 9
Add to favorites
Compare this product
Go to the YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. website for more information

Characteristics

Function
distribution, control, switching
Type
custom
Configuration
modular, floor-mounted, 19" rack
Material
sheet steel
Protection level
IK 10, IP55
Application
power distribution, industrial, for low-voltage power distribution, for electrical cables
Other characteristics
pre-assembled, for harsh environments, locking, double-door, single door, with hinged cover, for harsh environments
Width

Min.: 600 mm
(23.6 in)

Max.: 1,200 mm
(47.2 in)

Height

Min.: 1,600 mm
(63 in)

Max.: 2,200 mm
(86.6 in)

Depth

Min.: 400 mm
(15.75 in)

Max.: 600 mm
(23.62 in)

Description

Material: Welded frames: 1.5mm sheet steel with powder coating RAL7035 or RAL 7032 for option Front door: 1.5mm sheet steel with powder coating RAL7035 or RAL 7032 for option Rear panel:1.2mm sheet steel with powder coating RAL7035 or RAL 7032 for option Frame width crossbars: 1.5mm sheet steel with powder coating RAL7035 or RAL 7032 for option Mounting plate: 2.5mm galvanised steel Top plate:1.2mm sheet steel with powder coating RAL7035 or RAL 7032 for option Gland plate:1.2mm sheet steel with powder coating RAL7035 or RAL 7032 for option Plinth: 2.0mm sheet steel with powder coating RAL6022,depth 100mm or 200mm for option Supply includes: 2pcs welded frames 1 piece front door, 1 piece rear panel 4pcs frame width crossbars 1 piece mounting plate 1 piece top plate,1 piece gland plate 1 piece plinth 1 package of Cabinet Accessory Packs
