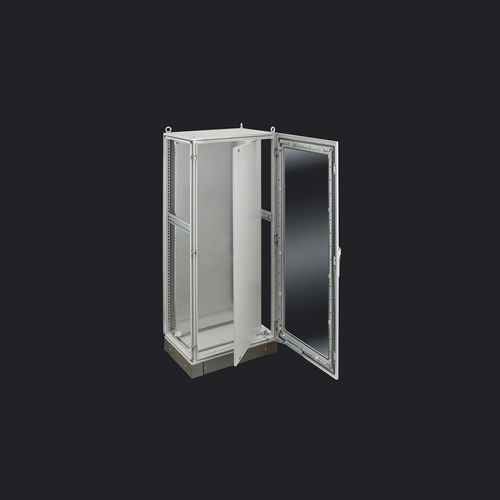

Switching electric cabinet ITD seriesdistributioncontrolfor secondary distribution
Add to favorites
Compare this product
Characteristics
- Type
- control, distribution, switching, for secondary distribution
- Mounting
- floor-mounted
- Material
- sheet steel, fiberglass-reinforced polyester
- Applications
- industrial, for telecommunications equipment, for railway equipment
- Other characteristics
- modular, IK10, with 3 point lock, with transparent door, with hinged door, NEMA, IP55
- Width
Min.: 600 mm
(23.6 in)Max.: 1,000 mm
(39.4 in)- Height
Min.: 1,600 mm
(63 in)Max.: 2,200 mm
(86.6 in)
Description
Internal door for GI Cabinet
GI modular series
Supply Include
Internal door with hinges and LK-005 lock system,fixing accessory
Paint finish epoxy polyester powder coating textured finish
Color: RAL 7035 RAL 7032 for option
Material: cold rolling steel
Thickness: front door:1.5mm
Product code H W
ITD-166 1600 600
ITD-168 1600 800
ITD-186 1800 600
ITD-188 1800 800
ITD-181 1800 1000
ITD-204 2000 400
ITD-206 2000 600
ITD-208 2000 800
ITD-201 2000 1000
ITD-226 2200 600
ITD-228 2200 800
