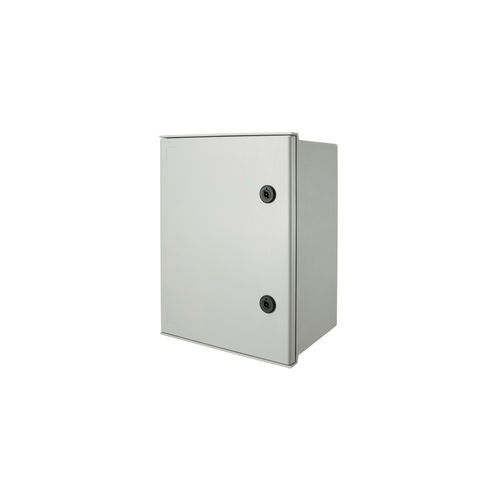

Wall-mount enclosure SMC series

for DIN railrectangularhexagonal

Fiberglass box, polyester enclosure, polyester cabinet,polyester box,GRP box,SMC box,fiberglass enclosure,fiberglass cabinet Fiberglass box industrial refers to a sturdy and durable enclosure made from fiberglass material, specifically designed for industrial use. -20% fiber glass Material: Glass Reinforced Polyester (GRP), UV stabilized Color: RAL 7035 (Light Grey) or as per project requirement Finish: Smooth, Gel-coated exterior for UV and chemical resistance Wall Thickness: Minimum 4mm to 6mm Ingress Protection: Minimum IP66 as per IEC 60529 Impact Resistance: IK10 as per IEC 62262 UV Resistance: Suitable for prolonged outdoor exposure, compliant with ISO 4892-2 Temperature Range: -40°C to +70°C Flammability Rating: UL 94 V-0 or equivalent Weatherproof and corrosion-resistant, suitable for coastal and high-saline environments Non-conductive and non-magnetic properties Lightweight yet mechanically robust Resistant to chemicals, oils, and acids Maintenance-free exterior Optional internal mounting plate (galvanized steel or insulated) Door: Hinged front opening door with 120° opening angle Sealing Gasket: Continuous EPDM gasket for weatherproof sealing lockable access door Mounted on Civil foundation structure Model Dimensions SMC-325 300X250X140MM SMC-43 400X300X200MM SMC-44 400X400X200MM SMC-54 500X400X200MM SMC-64 600X400X230MM SMC-65 600X500X230MM SMC-86 800X600X300MM SMC-108 1000X800X350MM
