Distribution electrical enclosure CAB series
controlswitchingequipped

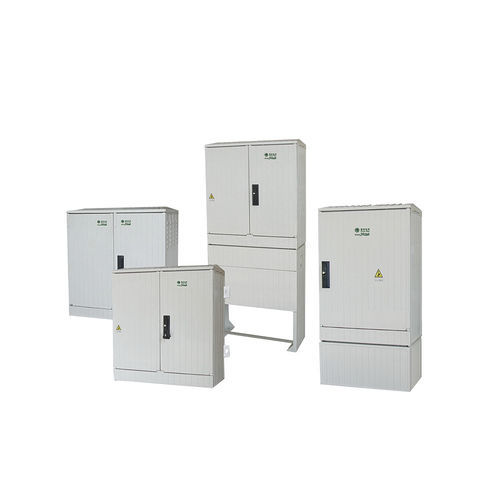

Distribution electrical enclosure - CAB series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / equipped
Distribution electrical enclosure - CAB series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / equipped
Distribution electrical enclosure - CAB series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / equipped - image - 2
Distribution electrical enclosure - CAB series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - control / switching / equipped - image - 3
Add to favorites
Compare this product
Go to the YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. website for more information

Characteristics

Function
distribution, control, switching
Type
equipped
Configuration
modular, floor-mounted
Material
polyester, fiberglass-reinforced polyester, GRP
Protection level
waterproof, IP54
Application
power distribution, industrial, outdoor, for photovoltaic applications, for railway applications, for telecommunications, for low-voltage power distribution
Other characteristics
safety, for harsh environments, locking, double-door, with hinged cover, for harsh environments
Width

Min.: 400 mm
(15.7 in)

Max.: 1,400 mm
(55.1 in)

Height

Min.: 650 mm
(25.6 in)

Max.: 1,250 mm
(49.2 in)

Depth

Min.: 242 mm
(9.53 in)

Max.: 640 mm
(25.2 in)

Description

Fiberglass cable branch boxes, engineered for durability and efficiency in power distribution networks. Made from premium-grade fiberglass, these boxes offer: - Corrosion & UV resistance for long-term outdoor use. - Lightweight yet robust design, simplifying installation. - Waterproof and dustproof (IP54 rating), ensuring reliability in harsh environments. - Modular compartments for flexible cable management. Ideal for telecom, utilities, and industrial projects, our branch boxes reduce maintenance costs and enhance safety. Components: 1. Back plate 2. Left Plate 3. Right Plate 4. Top Plate 5. Movable Plate 6. Left Door Plate 7. Door LockCatch 8. Screw 9. Square Nut 10. Section Lock Catch 11. Top Plate Screw 12. Pad 13. DoorLock Catch 14. Hinge Hitch 15. Lightning Symbol 16. Upper Sliding Part 17. Under Sliding Part 18. Door Lock 19. Door Lock Antislip Piece 20. Lock Bolt 21. Left Door Plate 22. Back Plate Connecting Piece 23. Base Right Plate 24. Base Front Back Plate Specifications: MODEL | H | W | D | BASE 250mm/280mm/880mm height CAB-64/24 | 650 | 400 | 242 | no base CAB-85/32 | 870 | 595 | 320 | CAB-87/32 | 870 | 790 | 320 | CAB-89/32 | 870 | 990 | 320 | CAB-811/32 | 870 | 1190 | 320 | CAB-115/32 | 1150 | 595 | 320 | BASE 280mm height CAB-117/32 | 1150 | 790 | 320 | CAB-119/32 | 1150 | 990 | 320 | CAB-1111/32 | 1150 | 1190 | 320 | CAB-175/32 | 1750 | 595 | 320 | BASE 880mm height CAB-179/32 | 1750 | 790 | | CAB-106/35 | 1000 | 600 | 350 | no base CAB-108/35 | 1000 | 800 | 350 | CAB-1010/35 | 1000 | 1000 | 350 | CAB-1012/35 | 1000 | 1200 | 350 | CAB-1014/35 | 1000 | 1400 | 350 | CAB-126/35 | 1250 | 600 | 350 | BASE 250mm height CAB-128/35 | 1250 | 800 | 350 | CAB-1210/35 | 1250 | 1000 | 350 | CAB-1212/35 | 1250 | 1200 | 350 | CAB-1214/35 | 1250 | 1400 | 350 | CAB-85/48 | 870 | 595 | 480 | no base CAB-87/48 | 870 | 790 | 480 | CAB-89/48 | 870 | 990 | 480 | CAB-811/48 | 870 | 1190 | 480 | CAB-115/48 | 1150 | 595 | 480 | base 280mm height CAB-117/48 | 1150 | 790 | 480 | CAB-119/48 | 1150 | 990 | 480 | CAB-1111/48 | 1150 | 1190 | 480 | CAB-85/64 | 870 | 595 | 640 | no base CAB-87/64 | 870 | 790 | 640 | CAB-89/64 | 870 | 990 | 640 | CAB-811/64 | 870 | 1190 | 640 | CAB-115/64 | 1150 | 595 | 640 | base 280mm height CAB-117/64 | 1150 | 790 | 640 | CAB-119/64 | 1150 | 990 | 640 | CAB-1111/64 | 1150 | 1190 | 640 | JP-119/64 | 1110 | 900 | 640 | JP cabinet JP-1112/64 | 1110 | 1200 | 640 | JP cabinet
