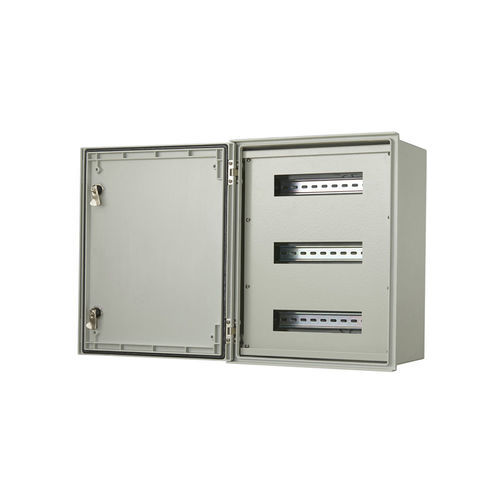

Wall-mounted junction box SMC series
surface mountedDIN railunderground

Wall-mounted junction box - SMC series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - surface mounted / DIN rail / underground
Wall-mounted junction box - SMC series - YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. - surface mounted / DIN rail / underground
Add to favorites
Compare this product
Go to the YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. website for more information

Characteristics

Mounting
wall-mounted, surface mounted, DIN rail, underground
Protection level
waterproof, corrosion-resistant, UV-resistant, halogen-free, for harsh environments, IEC, insulated, fire-resistant, reinforced, IK 10, weather-resistant, NEMA, self-extinguishing
Material
polyester, fiberglass-reinforced polyester, fiberglass, GRP
Applications
for proximity sensors, for industrial networks, for load cells, for hazardous areas, for cables, for telecommunications devices, for photovoltaic applications, circuit breaker, for offshore applications, push-button, for the oil and gas industry, for petrochemical and refinery installations, for explosive atmospheres, for marine applications
Number of knockout
8 knockouts
Other characteristics
indoor, outdoor, for low-voltage cables, Euro-style
Length / diameter

Min.: 400 mm
(15.7 in)

400 mm, 500 mm, 600 mm, 800 mm, 1,000 mm
(15.7 in, 19.7 in, 23.6 in, 31.5 in, 39.4 in)

Max.: 1,000 mm
(39.4 in)

Width

Min.: 300 mm
(11.81 in)

Max.: 810 mm
(31.89 in)

300 mm, 400 mm, 500 mm, 600 mm, 810 mm
(11.81 in, 15.75 in, 19.69 in, 23.62 in, 31.89 in)

Depth

Min.: 200 mm
(7.87 in)

Max.: 355 mm
(13.98 in)

200 mm, 230 mm, 300 mm, 355 mm
(7.87 in, 9.06 in, 11.81 in, 13.98 in)

Description

Fiberglass box, polyester enclosure, polyester cabinet,polyester box,GRP box,SMC box,fiberglass enclosure,fiberglass cabinet Supply include: door, enclosure, MCB rail racks Material of MCB racks: sheet steel thickness 1.2mm, powder coating RAL7035 Product code (Fiberglass box with circuit breaker rail racks) | Quantities of circuit breakers | Dimensions (mm) - SMC-43-C | 2 lines X 12P | 400 x 300 x 200 - SMC-44-C | 2 lines X 18P | 400 x 400 x 200 - SMC-54-C | 3 lines X 18P | 500 x 400 x 200 - SMC-64-C | 4 lines X 18P | 600 x 400 x 230 - SMC-65-C | 4 lines X 23P | 600 x 500 x 230 - SMC-86-C | 5 lines X 29P | 800 x 600 x 300 - SMC-108-C | 6 lines X 38P | 1000 x 810 x 355 - Material: Fiberglass - Includes: Door, enclosure, MCB rail racks - MCB racks material: Sheet steel, 1.2mm thickness, powder coating RAL7035 SMC,polyester enclosure,polyester cabinet,polyester box
