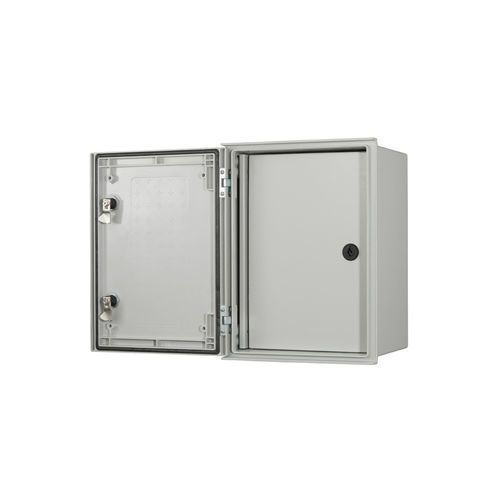

Distribution electrical enclosure SMC N series

controlswitchingequipped

Fiberglass box, polyester enclosure, polyester cabinet,polyester box with internal door Supply include: outer door . enclosure, internal door. Material of internal door: sheet steel thickness 1.2mm,powder coating RAL7035 Fiberglass box industrial refers to a sturdy and durable enclosure made from fiberglass material, specifically designed for industrial use. -20% fiber glass Material: Glass Reinforced Polyester (GRP), UV stabilized Color: RAL 7035 (Light Grey) or as per project requirement Finish: Smooth, Gel-coated exterior for UV and chemical resistance Wall Thickness: Minimum 4mm to 6mm Ingress Protection: Minimum IP66 as per IEC 60529 Impact Resistance: IK10 as per IEC 62262 UV Resistance: Suitable for prolonged outdoor exposure, compliant with ISO 4892-2 Temperature Range: -40°C to +70°C Flammability Rating: UL 94 V-0 or equivalent Weatherproof and corrosion-resistant, suitable for coastal and high-saline environments Non-conductive and non-magnetic properties Lightweight yet mechanically robust Resistant to chemicals, oils, and acids Maintenance-free exterior Optional internal mounting plate (galvanized steel or insulated) Door: Hinged front opening door with 120° opening angle Sealing Gasket: Continuous EPDM gasket for weatherproof sealing lockable access door Mounted on Civil foundation structureProduct code (PC window) Product code (Fiberglass box with internal door) Dimensions(mm) Internal door dimensions (mm) H W Fiberglass box, polyester enclosure, polyester cabinet,polyester box,GRP box,SMC box,fiberglass enclosure,fiberglass cabinet H W D SMC-43-N 400 300 200 366 258 SMC-44-N 400 400 200 366 358 SMC-54-N 500 400 200 466 358 SMC-64-N 600 400 230 566 358 SMC-65-N 600 500 230 566 458 SMC-86-N 800 600 300 766 558 SMC-108-N 1000 810 355 966 758
