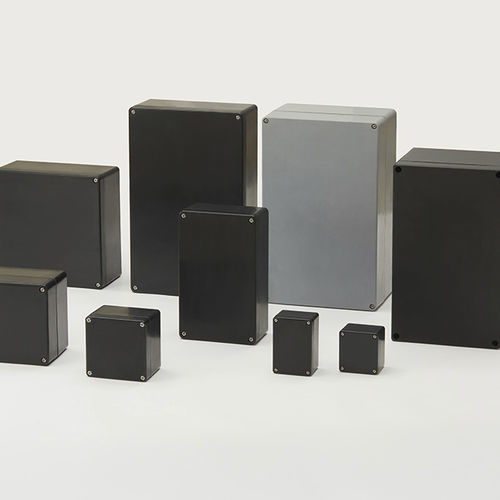

Wall-mount enclosure PB seriesfor DIN railrectangularhexagonal
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, for DIN rail
- Configuration
- rectangular, hexagonal
- Material
- polyester, fiberglass-reinforced polyester, fiberglass, fiberglass
- Application
- industrial, electronic equipment, indoor, outdoor, for electronics
- Protection level
- waterproof, IEC
Description
Black polyester box, black fiberglass enclosure, black SMC Terminal boxes
Black Fiberglass box, black polyester enclosure, black polyester cabinet,black polyester box,black GRP box,black SMC box,black fiberglass enclosure,black fiberglass cabinet
- High impact enclosures for tough environments
- Material: SMC
- Glow wire capability/Flammability: 960/UL94V0
- Expected UV life (Direct exposure): 25 years+
- IP level: IP68
- IK level: IK9
- Security level: Security level 1 for round enclosure and security level 2 for square/rectangle enclosure
Caractéristiques / spécifications techniques :
- Model: PB-0807, Dimensions: 80X75X55 mm
- Model: PB-1107, Dimensions: 110X75X55 mm
- Model: PB-1222, Dimensions: 122X120X90 mm
- Model: PB-1616, Dimensions: 160X160X90 mm
- Model: PB-1616-1, Dimensions: 160X160X120 mm
- Model: PB-2212, Dimensions: 220X120X90 mm
- Model: PB-2525, Dimensions: 250X250X90 mm
- Model: PB-2616, Dimensions: 260X160X90 mm
- Model: PB-4025, Dimensions: 400X250X120 mm
