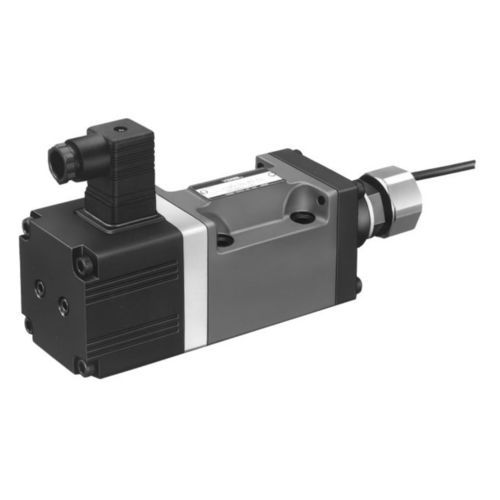

Servo-driven valve LSVG-03 series
hydrauliccompacthigh-speed

servo-driven valve
servo-driven valve
Add to favorites
Compare this product

Characteristics

Operation
servo-driven, hydraulic
Other characteristics
compact, high-speed
Temperature

Max.: 60 °C (140 °F)

Min.: -15 °C (5 °F)

Pressure

Max.: 5,080 psi

Min.: 1,020 psi

DN

3 mm (0.118 in)

Flow rate

Max.: 60 l/min (16 us gal/min)

Min.: 4 l/min (1 us gal/min)

Description

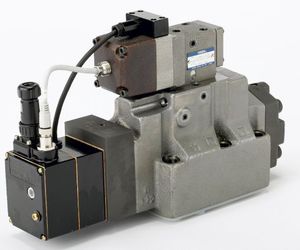

High-speed linear servo valves have outstanding features of high response and exceptional contamination resistance. These features are achieved by the compact and powerful linear motor which directly drives the spool and gives electric feedback of the spool position. These valves have garnered an excellent reputation since their launch by Yuken in 2001. Direct type LSVG-03 and two stage type LSVHG-04/06/10(which use the LSVG-03 as a pilot) are available.
