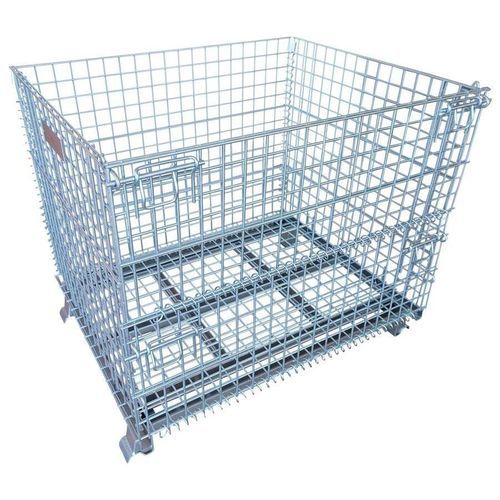

Wire mesh pallet box S1210.800.1000B

transporthandlingstorage

Overview
ZAMKO's collapsible steel mesh pallet cage is designed for industrial logistics, storage and transport. The 1200×1010×800 mm model combines a welded steel mesh structure with reinforced corners to secure goods during handling and stacking. Suitable for automotive, recycling, retail and cold-chain support operations.

Construction

• Frame: thicker steel bars for structural integrity and heavy-load support.
• Walls: welded steel wire mesh (mostly galvanized) for corrosion resistance and visibility.
• Base: optional base reinforcement to increase load capacity.
• Corners and edges: additional steel reinforcement at stress points.
• Feet and stackable design: integrated feet/corner posts for secure stacking.
• Access gate: front drop-down gate for fast loading/unloading.

Available dimensions
Listed model: 1200×1010×H800 mm. Other dimensions and bespoke sizes available on request; boxes can be manufactured to specification.

Benefits

• Durability and longevity — steel construction reduces replacement frequency and supports repeated use.
• Security and protection — protects stored items against damage, tampering and environmental exposure.
• Space efficiency — collapsible design minimises return transport and storage footprint.
• Ease of handling — forklift and pallet-jack compatible for fast operations.
• Recyclable material — steel supports sustainability and circular economy objectives.
• Lower total cost of ownership — reusable design reduces long-term costs.
• Improved safety — reinforced construction and smooth edges reduce handling risks.
• Hygienic and easy to clean — non-porous steel simplifies sanitation.
• Operational flexibility — quick collapse/deploy adapts to varying loads and storage needs.

Dimensions & basic table
Dimensions (mm): 1200×1010×H800
Ground size (mm): 1200×1010
Width (mm): 1200
Length (mm): 1010
Height (mm): 800
External height (mm): 800

Technical specifications

• SKU: S1210.800.1000B
• Dimensions (mm): 1200×1010×H800
• Width (mm): 1200
• Length (mm): 1010
• Height (mm): 800
• External dimensions (mm): 1200×1010×H800
• Ground size (mm): 1200×1010
• Load capacity static (kg): 1000
• Load capacity dynamic (kg): 1000
• Static stacking: 1+2
• Dynamic stacking: 1+1
• Wall thickness (mm): 6
• Condition: New
• Folding window: Yes
• Lid: No
• Walk-in: No
• Collar: No
• Collapsible: Yes
• Stackable: Yes
