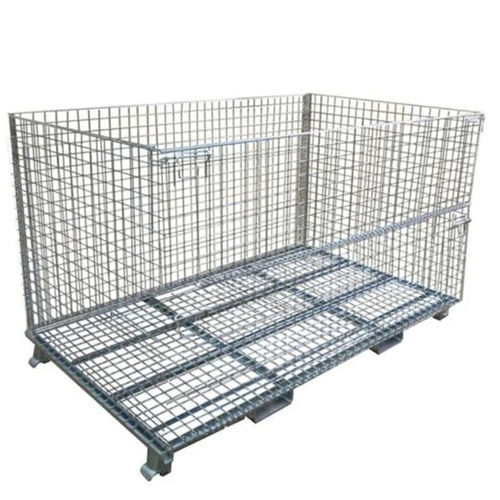

Wire mesh pallet box S1511.850

transporthandlingstorage

Overview
ZAMKO’s collapsible steel mesh wire cages provide a practical solution for industrial logistics and storage. Designed for repetitive handling, stacking and return transport, these cages optimise space and simplify handling workflows.

Available dimensions
Standard size: 1100×1500×H850 mm. Other dimensions and custom variants available on request.

Construction
The cages are manufactured from high-strength steel wires, typically galvanized for corrosion resistance.

• The frame: thicker steel sections provide structural support.
• The walls: welded mesh of thinner steel wires forming the side panels.
• Base: options with reinforced base plates to increase load capacity.
• Corners and edges: reinforced at stress points for improved durability under load.
• Feet and stackable design: feet or corner posts engineered for secure stacking and forklift handling.
• Access gate: usually one front drop-down gate for easy loading and unloading.

Benefits

• Service life: steel construction reduces replacement frequency.
• Item protection: mesh walls provide containment and visibility while protecting goods from damage.
• Space efficiency: collapsible design reduces return-transport volume.
• Handling compatibility: compatible with forklifts and pallet jacks to streamline operations.
• Recyclability: steel components are recyclable, supporting circular operations.
• Cost efficiency: reusability and reduced damage lower total operating costs.
• Operational safety: reinforced edges and smooth finishes reduce handling risks.
• Hygiene: non-porous metal surfaces are easy to clean for hygiene-sensitive environments.
• Flexibility: quick folding and deployment adapt to varying load sizes.

Technical specifications

• Dimensions (mm): 1100×1500×H850
• Width (mm): 1100
• Length (mm): 1500
• Height (mm): 850
• External height (mm): 850
• Ground size (mm): 1100×1500
• Static stacking: 1+2
• Dynamic stacking: 1+1
• Load capacity static (kg): 450
• Load capacity dynamic (kg): 450
• Condition: New
• Wall wire diameter (mm): 6.2
• Lid: No
• Folding window / drop gate: Yes
• Walk-in: No
• Collar: No
• Weight (kg): Depends on configuration
