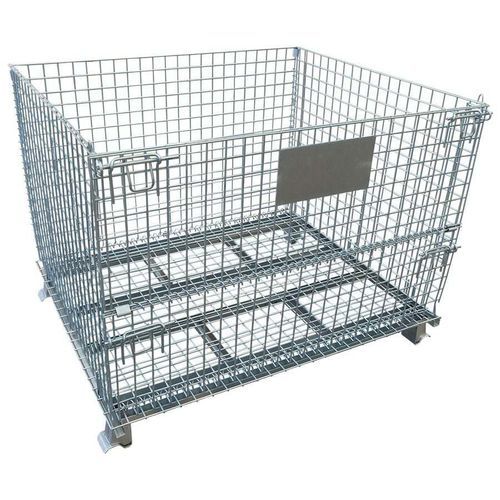

Wire mesh pallet box S1210.800.1700B

transporthandlingstorage

Product overview
ZAMKO collapsible mesh pallet cages are designed for industrial logistics and storage. Suitable for forklift and pallet-jack handling, they offer secure containment, stackability and return-transport space savings. This model is new and supplied in the 1200×1010 footprint with 800 mm height and a static load capacity of 1700 kg.

Construction
Built from high-strength steel wire with corrosion-resistant finish options. Key construction elements include:

• Reinforced frame
  Thicker steel bars form the main frame for structural integrity.
• Welded mesh walls
  Grid of thinner wires welded to provide containment and visibility.
• Reinforced base
  Optional strengthened base for higher load distribution on some variants.
• Corner reinforcement
  Critical stress points are reinforced for stacking and handling.
• Front folding access gate
  Single drop-down window for easy picking and loading.
• Stacking feet/posts
  Feet or posts designed for stable, secure stacking.

Benefits

• Durability
  Steel construction ensures long service life and repeat use.
• Protection
  Mesh walls protect goods from damage and unauthorized access.
• Space efficiency
  Collapsible design reduces return-transport and storage footprint.
• Handling efficiency
  Optimised for forklift and pallet-jack operations to speed throughput.
• Recyclable material
  Steel supports circular economy and sustainability targets.
• Cost-effective
  Reusable design lowers total cost of ownership.
• Improved safety
  Reinforcements and smooth finishes reduce handling risks.
• Hygiene
  Non-porous steel surfaces are easy to clean for hygiene-critical uses.
• Operational flexibility
  Quick collapse/deploy supports mixed load sizes and workflows.

Product table
Dimensions (mm): 1200×1010×H800
Ground size (mm): 1200×1010
Width (mm): 1200
Length (mm): 1010
Height (mm): 800
External dimensions (mm): 1200×1010×H800
Load capacity static (kg): 1700
Load capacity dynamic (kg): 1700
Static stacking: 1+2
Dynamic stacking: 1+1
Wall thickness (mm): 6.2
Folding window: yes
Lid: no
Walk-in: no
Collar: no
Condition: New

Technical specifications

• Model / Range: Riqian USA Mesh Wire SELECTION
• SKU: S1210.800.1700B
• External dimensions: 1200 × 1010 × H800 mm
• Ground size: 1200 × 1010 mm
• Width: 1200 mm
• Length: 1010 mm
• Height: 800 mm
• Static load capacity: 1700 kg
• Dynamic load capacity: 1700 kg
• Static stacking capacity: 1+2
• Dynamic stacking capacity: 1+1
• Wall thickness: 6.2 mm
• Folding (access) window: yes
• Lid: no
• Walk-in: no
• Collar: no
• Condition: New
