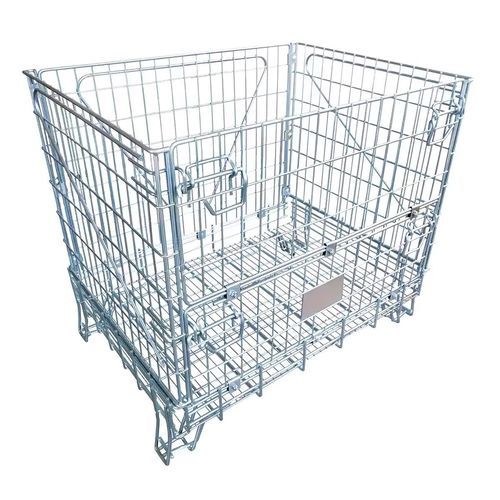

Wire mesh pallet box S11408.980.W

transporthandlingstorage

Product overview
ZAMKO’s collapsible steel mesh wire cages provide a durable, space-efficient solution for industrial logistics, warehousing and transport. Their welded mesh construction and handling features support high-frequency use in demanding operational environments.

Available dimensions
Multiple standard dimensions are available to match different pallet sizes and storage systems. Custom dimensions and special adaptations can be manufactured on request to meet specific operational requirements.

Construction

• Frame: thicker steel bars for structural integrity and load distribution.
• Walls: welded mesh of thinner steel wires for visibility, ventilation and containment.
• Base: some versions include reinforced base panels to increase load capacity.
• Corners and edges: reinforced at stress points for improved durability.
• Feet and stackable design: feet or corner posts designed to lock securely for stable stacking.
• Access gate: front drop-down gate (folding window) for easy loading and picking.

Technical specifications
Dimensions (mm): 830 x 1140 x H980
Width (mm): 830
Length (mm): 1140
Height (mm): 980
External height (mm): 980
Ground size (mm): 830 × 1140
External dimensions (mm): 830 x 1140 x H980
Static stacking: 1+2
Dynamic stacking: 1+1
Load capacity static (kg): 800
Load capacity dynamic (kg): 800
Condition: New
Lid: No
Folding window: Yes
Walk-in: No
Collar: No

Benefits

• Durability: steel construction extends service life and reduces replacement cycles.
• Protection: protects contents from damage, tampering and environmental exposure.
• Space efficiency: collapsible design reduces return-transport volume and saves warehouse space.
• Handling efficiency: compatible with forklifts and pallet jacks to speed up operations.
• Recyclability: steel construction supports circular economy and sustainability targets.
• Cost-effectiveness: reusable and long-lasting, lowering total operating cost.
• Safety: reinforced edges and smooth finishes reduce handling injuries.
• Hygiene: non-porous, easy-to-clean surfaces suitable for hygiene-sensitive sectors.
• Operational flexibility: quick collapse and deployment adapt to variable load sizes.

Characteristics / technical specifications

• Product type: Collapsible steel mesh wire cage
• Model name: Mesh pallet cage
• SKU: S11408.980.W
• Dimensions (mm): 830 x 1140 x H980
• Width: 830 mm
• Length: 1140 mm
• Height / External height: 980 mm
• Ground size: 830 × 1140 mm
• Static stacking: 1+2
• Dynamic stacking: 1+1
• Load capacity static: 800 kg
• Load capacity dynamic: 800 kg
• Folding window: Yes
• Lid: No
• Walk-In: No
• Collar: No
• Condition: New
• Material: high-strength steel wires (mostly galvanized for corrosion resistance)
