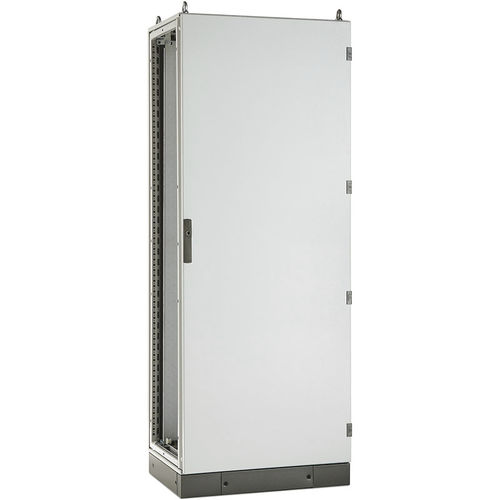

Electric cabinet with post DRC SP series

aluminum

1000 NUMBER OF DOORS 1 2 HEIGHT 1410 1610 1810 2010 2210 WIDTH Range: 200 - 1600 mm PRODUCTS / PAINTED SHEET / CABINETS / DRC CABINETS / DRC SP DRC SP DRC SP THE EQUIPMENT INCLUDES: SOLID DOOR – BACK PANEL Structure: 1,5 mm thick steel sheet drawn-columns bearing frame; drawn-columns are fixed and welded to die-cast aluminum joints. 25 mm pitch drilling scheme; roof and plinth fixed to structure. Side and back panels: 1,5 mm thick steel sheet; polyurethane sealing gasket; fixed to structure. Internal plate: 2 mm thick galvanised steel sheet (Sendzimir), with front or side installation by means of sliding guides; adjustable depth. Solid door: 1,8 mm thick steel sheet; polyurethane sealing gasket; 20×20 mm pre-drilled tubular frame. 100° standard opening with reversible right hinges. Standard central locking systems with double-comb tool insert and 4 anchor points. Other configurations are available. Cable entry flange: 1,5 mm steel sheet; it consists in 2 or 3 parts, with neoprene cable-tie gasket. Earthing: M6 pins to be welded on structure, doors and panels. Painting: Thermosetting powders.
