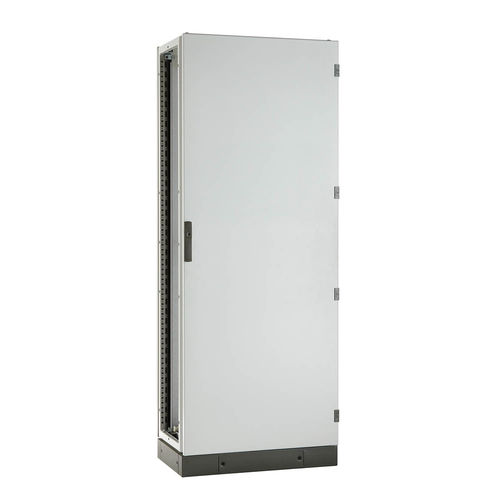

Electric cabinet with post KA seriessteelmodularIP66
Add to favorites
Compare this product
Characteristics
- Mounting
- with post
- Material
- steel
- Other characteristics
- modular, IP66, NEMA 12, IK10
- Width
Min.: 400 mm
(15.7 in)Max.: 1,600 mm
(63 in)- Height
1,600 mm, 1,800 mm, 2,000 mm, 2,200 mm
(63 in, 70.9 in, 78.7 in, 86.6 in)- Depth
400 mm, 500 mm, 600 mm, 800 mm
(16 in, 20 in, 24 in, 31 in)
Description
THE EQUIPMENT INCLUDES: SOLID DOOR – INTERNAL PLATE – BACK PANEL
Structure:
1,5 mm thick steel sheet drawn-columns bearing frame, welded on roof and bottom. 25 mm pitch drilling scheme
Side and back panels:
1,5 mm thick steel sheet; polyurethane sealing gasket; fixed to structure.
Internal plate:
2 mm thick galvanised steel sheet (Sendzimir), with front or side installation by means of sliding guides; adjustable depth.
Solid door:
1,8 mm thick steel sheet; 20×20 mm pre-drilled tubular frame; polyurethane sealing gasket. 100° standard opening with reversible right hinges. Standard central locking systems with double-comb tool insert and 4 anchor points. Other configurations are available.
Cable entry flange:
1,5 mm steel sheet; it consists in 2 or 3 parts, with neoprene cable-tie gasket.
Earthing:
M6 pins to be welded on structure, doors and panels.
Painting:
Thermosetting powders.
