Electric cabinet with post DRCP/SP series
aluminum

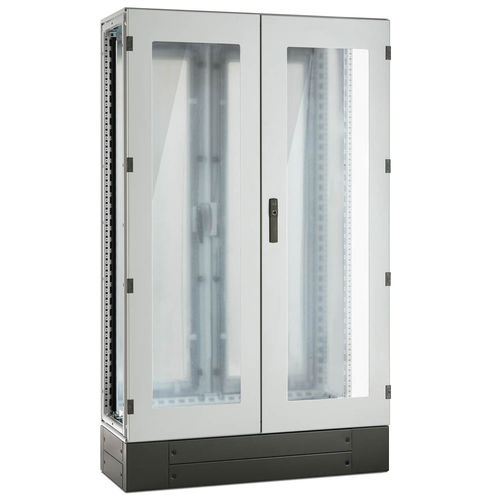

Electric cabinet with post - DRCP/SP series - Zanardo SpA - aluminum
Electric cabinet with post - DRCP/SP series - Zanardo SpA - aluminum
Add to favorites
Compare this product

Characteristics

Mounting
with post
Material
aluminum
Width

Max.: 1,600 mm
(63 in)

Min.: 600 mm
(23.6 in)

Height

1,410 mm, 1,610 mm, 1,810 mm, 2,010 mm, 2,210 mm
(55.5 in, 63.4 in, 71.3 in, 79.1 in, 87 in)

Depth

400 mm, 500 mm, 600 mm, 800 mm, 1,000 mm
(16 in, 20 in, 24 in, 31 in, 39 in)

Description

THE EQUIPMENT INCLUDES: GLASS DOOR – BACK PANNEL Structure: 1,5 mm thick steel sheet drawn-columns bearing frame; drawn-columns are fixed and welded to die-cast aluminum joints. 25 mm pitch drilling scheme; roof and plinth fixed to structure. Side and back panels: 1,5 mm thick steel sheet; polyurethane sealing gasket; fixed to structure. Internal plate: 2 mm thick galvanised steel sheet (Sendzimir), with front or side installation by means of sliding guides; adjustable depth. Transparent door: Same characteristics as solid door, but it is provided with a tempered glass porthole.
 BY SEPARATED ORDERING: 1,5 mm thick steel sheet internal door. Cable entry flange: 1,5 mm steel sheet; it consists in 2 or 3 parts, with neoprene cable-tie gasket. Earthing: M6 pins to be welded on structure, doors and panels. Painting: Thermosetting powders.
