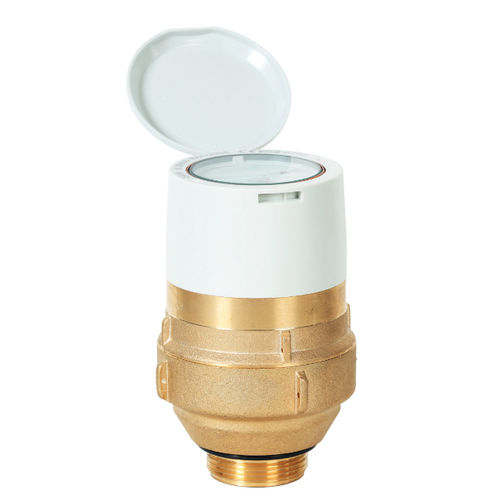

Rotary piston flow meter RTKP-MF-M-CC

for waterDN20 - 3/4"threaded

The RTKP-MF-M-CC is a manifold-type rotary piston dry-dial meter for cold water. The RTKP-MF-M-CC records the flow rate according to the volumetric measuring principle. It offers a very high measuring range, excellent measuring stability and therefore guarantees extremely precise consumption recording. The RTKP-MF-M-CC features a very low starting flow and is permitted for all installation positions. The meter is equipped with an 8-digit glass/copper register (IP68) and a modulator disc. This enables electronic, non-reactive scanning and is the basis for remote reading of meter data via radio with LoRaWAN® or wMBus (according to OMS). A combined M-Bus/pulse module is also possible. Features Rotary piston dry-dial meter for any installation position (except overhead) Equipped with glass/copper register (IP68) as standard 8-digit register and modulator disc for non reactive, electronic pulse detection Register rotatable 355° Operating pressure MAP 16 Approved in accordance with MID Anwendung For the consumption measurement of cold and clean drinking water or service water up to 50°C AMR Technologien As standard with communication interface for EDC modules (Electronic Data Capture): EDC LPWAN radio module (868 MHz) for LoRaWAN® EDC wireless M-Bus radio module according to OMS standard (868 MHz), EN 13757-4 EDC- combined M-Bus and pulse module Measuring Principle - Positive Displacement Meters Register - Dry Dial protection class IP 68 ("Copper Can") Nominal Flow Q3 (≈ Qn) - Q3=1,6 (≈ Qn 1) Q3=2,5 (≈ Qn 1,5) Q3=4 (≈ Qn 2,5)
