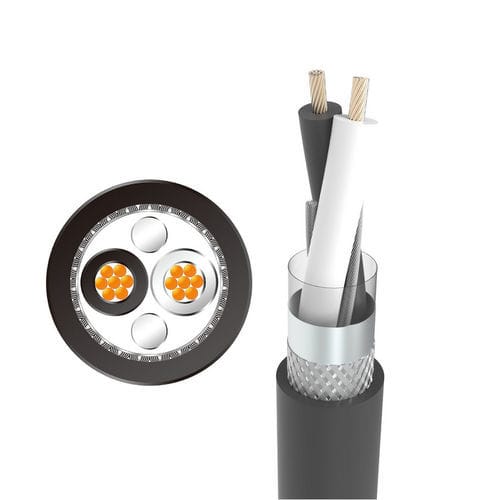

Electrical cable for railway applications wWTBdataEthernetT
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- Ethernet, T
- Protection
- flame-retardant, oil-resistant, chemical-resistant, high-temperature, low-smoke, weather-resistant, low-temperature
- Configuration
- stranded, foil
- Core material
- copper, aluminum
- Applications
- for railway applications, for train communication networks
- Material of the insulation
- polyethylene insulated, metal-sheathed
- Color of the insolation
- black
- Norms
- EN 45545
- Other characteristics
- halogen-free, EMI
- Temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)
Description
It is specially designed for rail vehicles and used in train communication networks such as MVB/WTB. The cables have good weather resistance and safety, and are especially suitable for complex rail transit industries.
—Characteristic impedance: 120±12Ω
—Reference standard: EN45545-2, TJ/CL 313, TB/T 1484.3
Conductor: Stranded copper conductor
Insulation: Foamed PE
Shielding: aluminum foil wrapped and tinned copper braid
Sheath: cross-linked LSZH
Color: black (approximately RAL 9004)
Superior transmission performance
Has good resistance to external electromagnetic interference
High flame resistance, meeting the requirements of IEC60332-1&IEC60332-3-25
Halogen-free, low smoke, low toxicity
Acid and alkali resistance, ozone resistance
Excellent oil resistance
The cable has good resistance to high and low temperature
