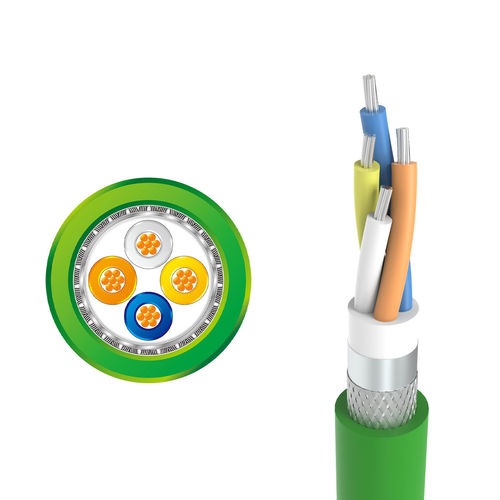

ProfiNet electrical cable LONGTRONIC® YPE B
dataEthernetflame-retardant

ProfiNet electrical cable
ProfiNet electrical cable
ProfiNet electrical cable
ProfiNet electrical cable
ProfiNet electrical cable
Add to favorites
Compare this product


Characteristics

Type
data
Format
Ethernet
Protection
flame-retardant, low-smoke
Configuration
stranded
Core material
copper
Applications
industrial, control
Material of the insulation
PVC-sheathed, polyethylene insulated, metal-sheathed, Mylar-shielded
Color of the insolation
blue, green, orange, white, yellow
Bus
ProfiNet
Other characteristics
highly flexible, halogen-free, EMI, CAT 5e
Temperature

Min.: -20 °C (-4 °F)

Max.: 80 °C (176 °F)

Description

This cable is designed for PROFINET and widely used in industrial Ethernet fields, such as machines, equipments, instruments and control panel.Electrical performance according to CAT5e. Suitable for fixed application or occasional movement. Occasional Movement: PVC: -5°C ~ 60°C FRNC: -5°C ~ 70°C —Test Voltage 2000V / min (AC) —Characteristic Impedance 100±15Ω —ConductorDCR (20℃) ≤60Ω/ km —Minimum Bending Radius Fixed Application: 8D (D = cable diameter) Occasional Movement: 15D (D = cable diameter) Conductor: Stranded tinned copperwire Insulation: PE Color: White, Yellow, Blue, Orange Inner jacket: PVC FRNC Shield: AL / Mylar wrapped and tinned copper braid Jacket: PVC FRNC Color: Green (similar to RAL.6018) Flame resistance according to IEC60332-1 Have good performance of resistant to external EMI Halogen free,low smoke for FRNC jacket cable Excellent transmission performance
